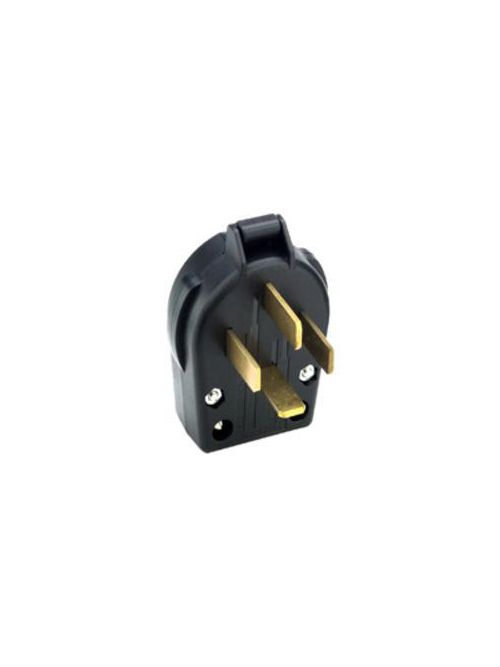

EWD 5517N Plug 60A 120/208V 3PH 4P4
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
3 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # 5517N
Viking Electric Part # 11650

Specifications

  • Height: 3.375 IN
  • Length: 6.938 IN
  • Width: 3.61 IN
  • Weight: 1.05 LB
  • Allowable Wire Size: #12 - #4 AWG
  • Amperage Rating: 60A
  • Voltage Rating: 120/208V
  • Color: Gray
  • Contact Material: Brass
  • Design Type: Plug
  • Nema Configuration: 18-60P
  • Number Of Poles: Four-pole
  • Number Of Wires: Four-wire
  • Receptacle Type: Four-pole, four-wire, non grounding
  • Style Type: Power
  • Connection Type: Screw
  • Material: Nylon

Categories

Overview

UPC 04089301999
Long Description Eaton Arrow Hart extra heavy-duty auto grip plug , #12-4 AWG, 60A, Industrial, 120/208V, Back wire, Gray, Brass, Thermoplastic, 18-60P, Four-pole, four-wire, non grounding, Screw, Thermoplastic, Core pack
GTiN 00040893019994
Length 6.938 in
Width 3.61 in
Color Gray
Voltage 120/208 Volt
Type Straight Blade
Material Thermoplastic
Applications STRGHT BLADE PLG&CONNEC
Height 3.375 in
Weight 1.05 lb
Family Brand Name Eaton
Amperage 60 Amp
Number of Poles 4 Pole
Number of Wires 4
Sub Brand Eaton Wiring Devices
Wire Size 12-4 AWG
Cord Range 0.425 - 1.310 in
Connection Type Screw
NEMA 18-60P
Number of Phases 3 Phase
