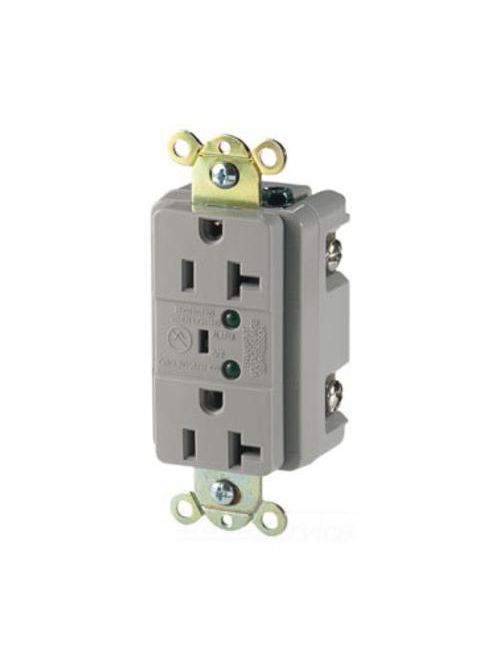

EWD 5362VS Recp TVSS 20A 125V 2P3W
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually available within 6 to 8 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # 5362VS
Viking Electric Part # 11301

Specifications

  • Height: 1.75 IN
  • Voltage Rating: 125V
  • Wiring Method: Back and side
  • Length: 4.25 IN
  • Joules: 560J
  • Width: 2 IN
  • Material: Thermoplastic
  • Number Of Receptacles: 2
  • Operating Temperature: 0° to 40°C
  • Color: Ivory
  • Nema Configuration: 5-20R
  • Receptacle Type: Two-pole, three-wire, grounding

Certifications

  • UL
  • NOM
  • Federal Specification Classification 6233 01

Product Compliance

  • RoHS Compliant

Overview

UPC 04089361889
Long Description Recp TVSS 20A 125V 2P3W Led & Alarm IV 3618890
GTiN 00040893618890
Length 4.25 in
Width 2 in
Color Ivory
Operating Temperature 0 To 40 C
Voltage 125 Volt
Type Duplex,Straight Blade,Surge Protection
Material Thermoplastic
Applications SURGE SUPPRESSOR
Height 1.75 in
Wire Size 14-10 AWG
Connection Type Screw
Family Brand Name EATON
NEMA 5-20R
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Eaton Wiring
