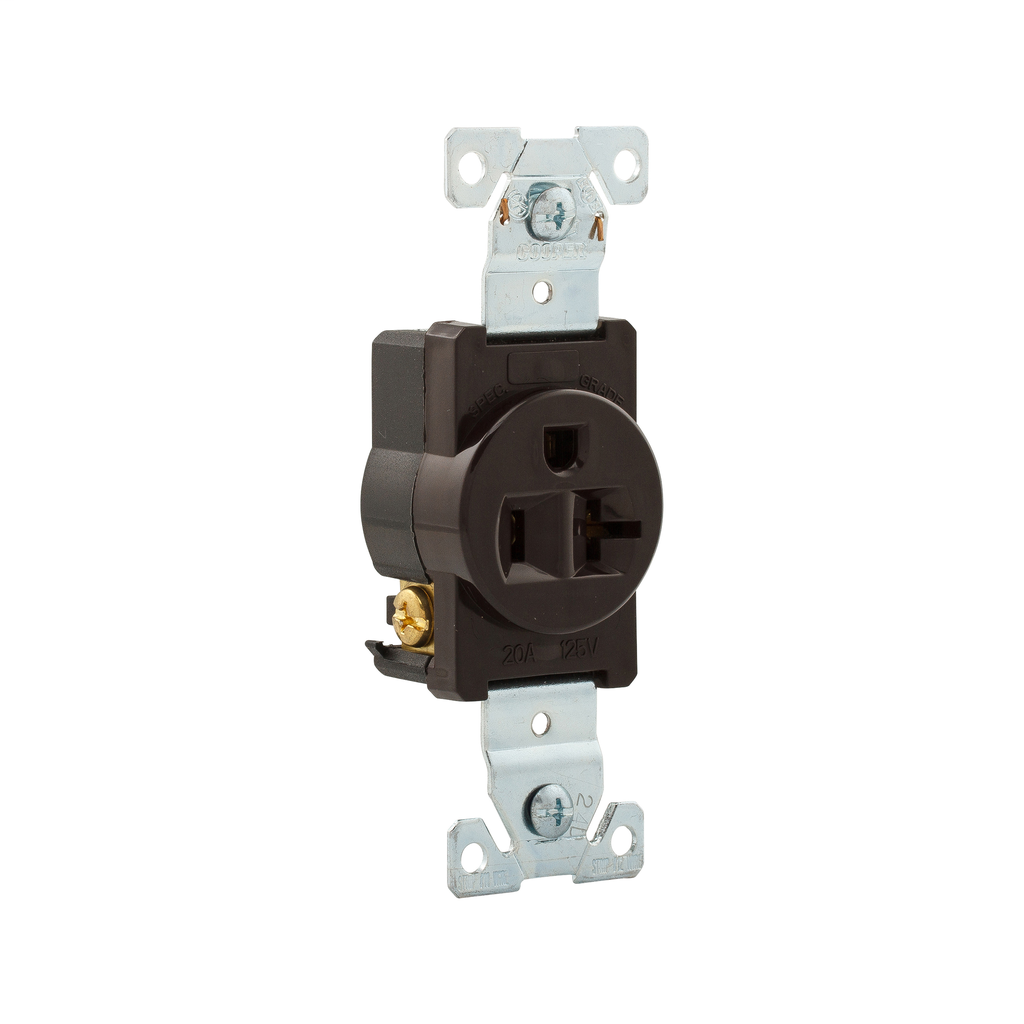

Arrow Hart Wiring 5361B 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Brown Straight Blade Single Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually available within 9 to 13 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # 5361B
Viking Electric Part # 11264

Specifications

  • Height: 4.19 IN
  • Length: 1.32 IN
  • Width: .88 IN
  • Allowable Wire Size: #14 to 10 AWG
  • Amperage Rating: 20A
  • Mounting Type: Flush
  • Voltage Rating: 125V
  • Wiring Method: Back and side
  • Color: Brown
  • Contact Material: Brass
  • Design Type: Receptacle
  • Nema Configuration: 5-20R
  • Number Of Poles: Two-pole
  • Number Of Wires: Three-wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Style Type: Single
  • Connection Type: Screw
  • Material: Nylon

Overview

UPC 03266438190
Long Description Eaton Arrow Hart extra heavy-duty industrial specification grade single receptacle, #14-10 AWG, 20A, Industrial, Flush, 125V, Back and side, Brown, Brass, Nylon, 5-20R, Single, Screw, Nylon, Core pack
GTiN 00032664381904
Length 1.32 in
Width .88 in
Color Brown
Voltage 125 Volt
Type Straight Blade
Material Nylon
Applications INDUSTRIAL RECEPTACLES
Height 4.19 in
Family Brand Name Eaton
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Arrow Hart
Conductor Size 14-10 AWG
Grade Industrial
Wire Type Back Wire
Temperature Rating -20 to 60 C
Grounding Grounding
Contact Material Brass
Dielectric Strength 2000 V
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
