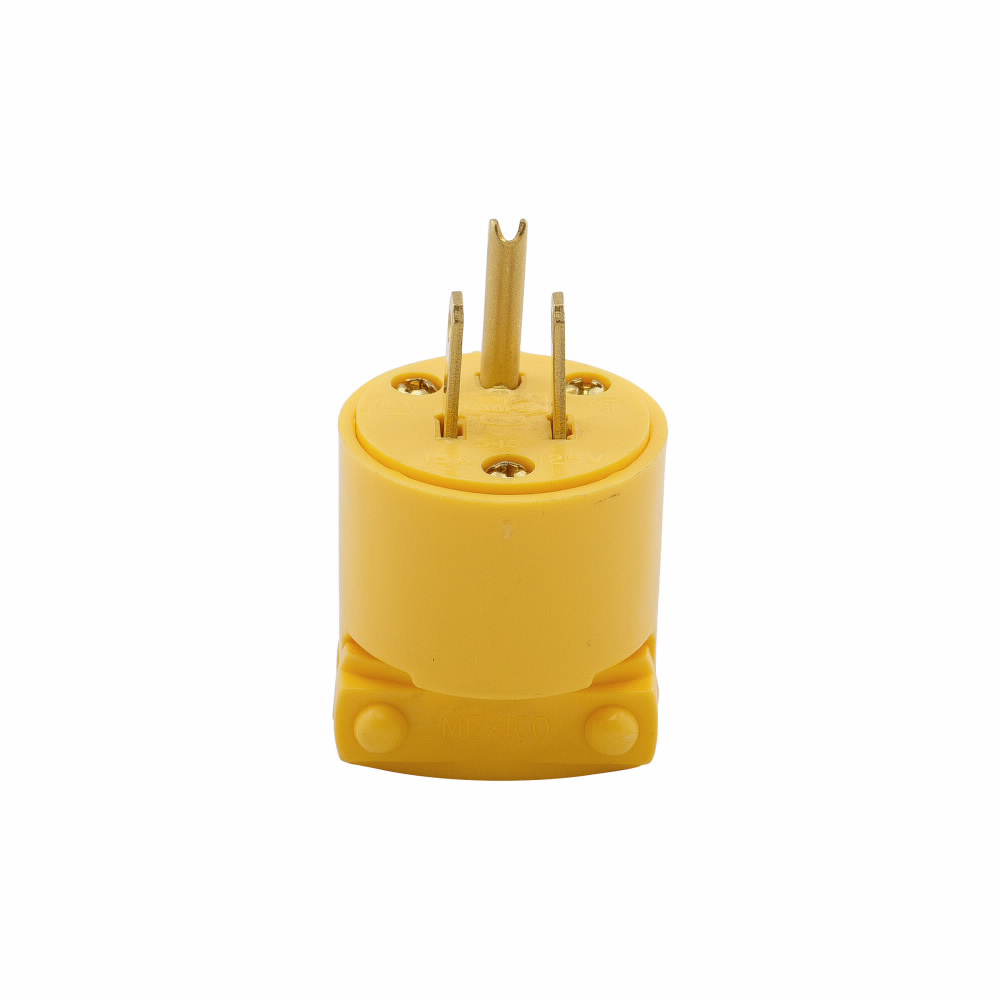

EWD 4867-BOX Plug 15A 125V 2P3W Vin
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually available within 6 to 8 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # 4867-BOX
Viking Electric Part # 9800

Specifications

  • Special Features: Angled body
  • Color: Yellow
  • Device Type: Plug
  • Face/Body Material: Vinyl
  • Wiring Method: Back wire
  • Material: Vinyl
  • Allowable Wire Size: #18-12 AWG
  • Amperage Rating: 15A
  • Number Of Poles: Two-pole
  • Contact Material: Brass
  • Device Grade: Commercial
  • Nema Configuration: 5-15P
  • Style Type: Straight body
  • Design Type: Straight blade
  • Connection Type: Screw
  • Number Of Wires: Three-wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Voltage Rating: 125V
  • Application: Commercial

General

  • UPC: 032664340901
  • Product Length/Depth: 2.5 IN
  • Product Height: 1.5 IN
  • Product Width: 1.5 IN
  • Product Weight: .06 LB
  • Compliances: RoHS Compliant
  • Certifications: UL

Overview

UPC 03266434090
GTiN 00032664340901
Family Brand Name Eaton
Long Description Commercial Grade Plugs & Connectors - NEMA 5-15, 2-Pole/3-Wire are designed for light commercial applications, where ease-of-use, value and quality are critical.
Length 2.5 in
Color Yellow
Type Commercial Grade, Grounded Straight
Material Vinyl
Applications For Hard Surface Application
Weight .06 lb
Temperature Rating -20 to 60 deg C
Contact Material Solid Brass
Amperage 15 Amp
Blade Dimensions 1-1/2 in W x 2.45 in D x 1-1/2 in H
Cord Size 1/4 - 0.655 in
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Eaton Wiring Devices
Voltage 125 Volt
Mounting Type Plug
Wire Size 18-10 AWG
Connection Type Plug
