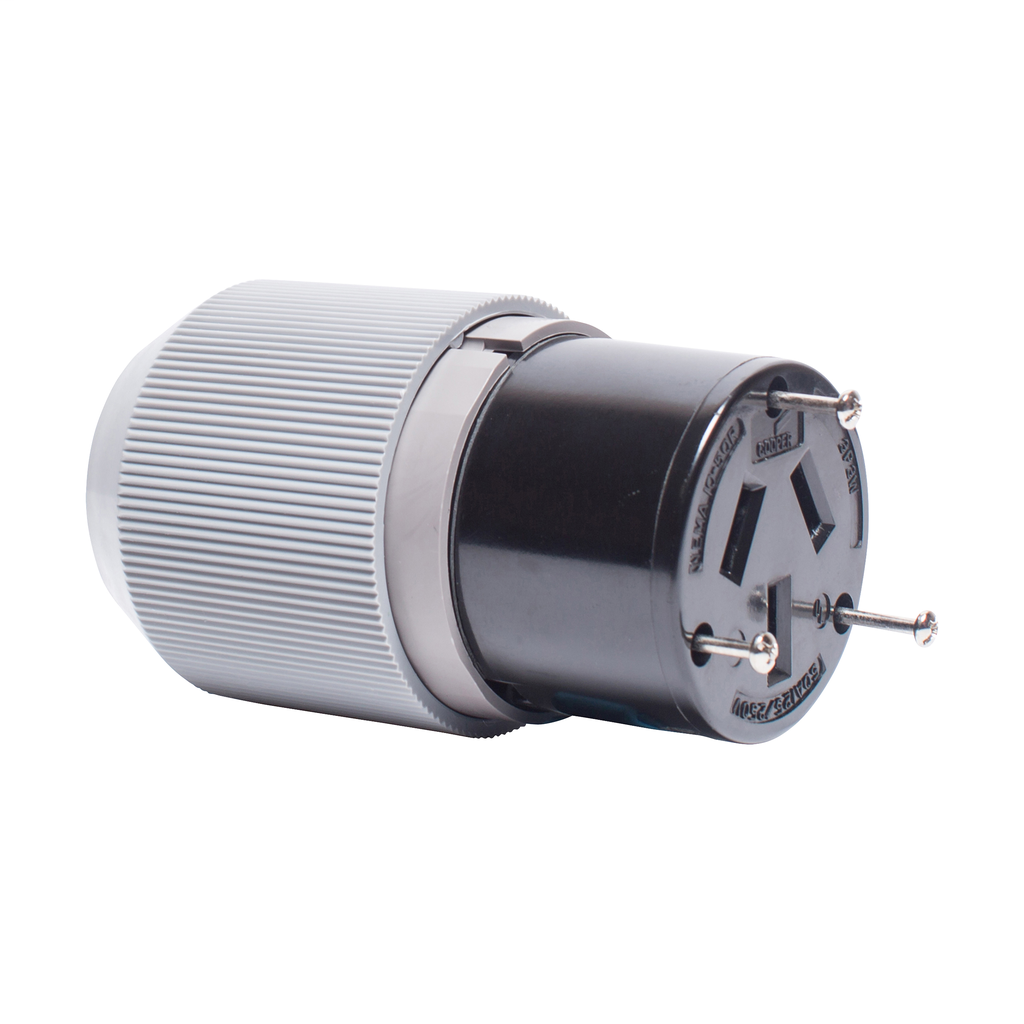

EWD 4526N Conn 50A 125/250V 3P3W St
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually available within 8 to 12 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # 4526N
Viking Electric Part # 9372

Specifications

  • Special Features: AutoGrip
  • Color: Gray
  • Device Type: Connector
  • Face/Body Material: Thermoplastic with neoprene gasket
  • Wiring Method: Back wire
  • Material: Vinyl
  • Allowable Wire Size: #10-8 AWG
  • Amperage Rating: 50A
  • Number Of Poles: Three-pole
  • Contact Material: Brass
  • Device Grade: Industrial specification
  • Nema Configuration: 10-50C
  • Style Type: Straight body
  • Design Type: Straight blade
  • Connection Type: Screw
  • Number Of Wires: Three-wire
  • Voltage Rating: 125/250 V
  • Application: Industrial

General

  • UPC: 040893023083
  • Product Length/Depth: 6.938 IN
  • Product Height: 3.375 IN
  • Product Width: 3.61 IN
  • Product Weight: 1.19 LB
  • Warranty: Refer to warranty document.
  • Certifications: cULus Listed

Categories

Overview

UPC 04089302308
Long Description Eaton Arrow Hart extra heavy-duty auto grip connector , #10-8 AWG, 50A, Industrial, 125/250V, Back wire, Gray, Brass, Thermoplastic with neoprene gasket, 10-50C, Screw, Vinyl, Core pack
GTiN 00040893023083
Length 6.938 in
Width 3.61 in
Color Gray
Voltage 125/250 Volt
Type Straight Blade
Material Vinyl
Applications STRGHT BLADE PLG&CONNEC
Height 3.375 in
Weight 1.05 lb
Family Brand Name Eaton
Amperage 50 Amp
Number of Poles 3 Pole
Number of Wires 3
Sub Brand Eaton Wiring Devices
Wire Size 12-4 AWG
Cord Range 0.425 - 1.310 in
Connection Type Screw
NEMA 10-50R
Environmental Conditions -40 To 75 C
