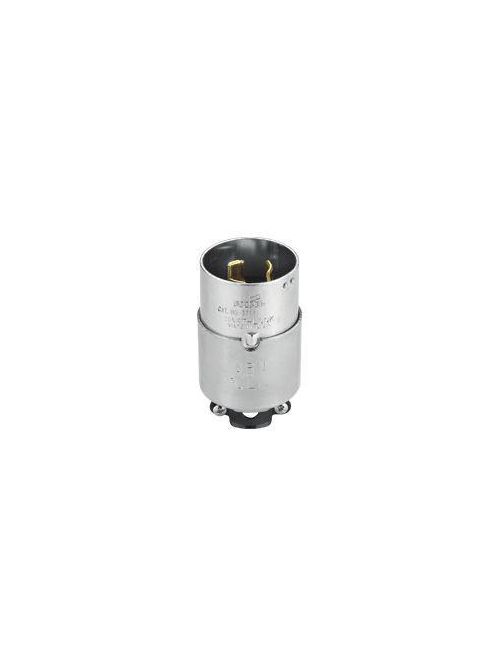

Arrow Hart Wiring 3763 50 Amp 600 VAC 250 VDC 2-Pole 3-Wire Steel Armored Non-NEMA Locking Plug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
2 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # 3763
Viking Electric Part # 7151

Specifications

  • Allowable Wire Size: #10-6 AWG
  • Height: 2.68 IN
  • Weight: 1.2 LB
  • Amperage Rating: 50A
  • Length: 5.73 IN
  • Application: Industrial
  • Width: 3.1 IN
  • Voltage Rating: 600 Vac, 250 Vdc
  • Wiring Method: Back
  • Color: Steel
  • Design Type: Armored
  • Nema Configuration: Non-NEMA
  • Number Of Poles: Two-pole
  • Number Of Wires: Three-wire, grounding
  • Cord Diameter: 0.68 to 1.13 in

Certifications

  • CSA certified
  • cULus Listed

Overview

UPC 04089368199
Long Description Eaton locking plug, #10-6 AWG, 50A, Industrial, 600 Vac, 250Vdc, Back wiring, Steel, Armored, Non-NEMA, Two-pole, Three-wire, grounding, Steel, 0.68 to 1.13 in
GTiN 00040893681993
Length 5.73 in
Width 3.1 in
Color Steel
Voltage 250 Volt
Type Industrial
Applications LOCKING DEVICES
Height 2.68 in
Weight 1.2 lb
Wire Size 10-6 AWG
Standard UL
Family Brand Name Eaton
Amperage 50 Amp
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Eaton Wiring Devices
