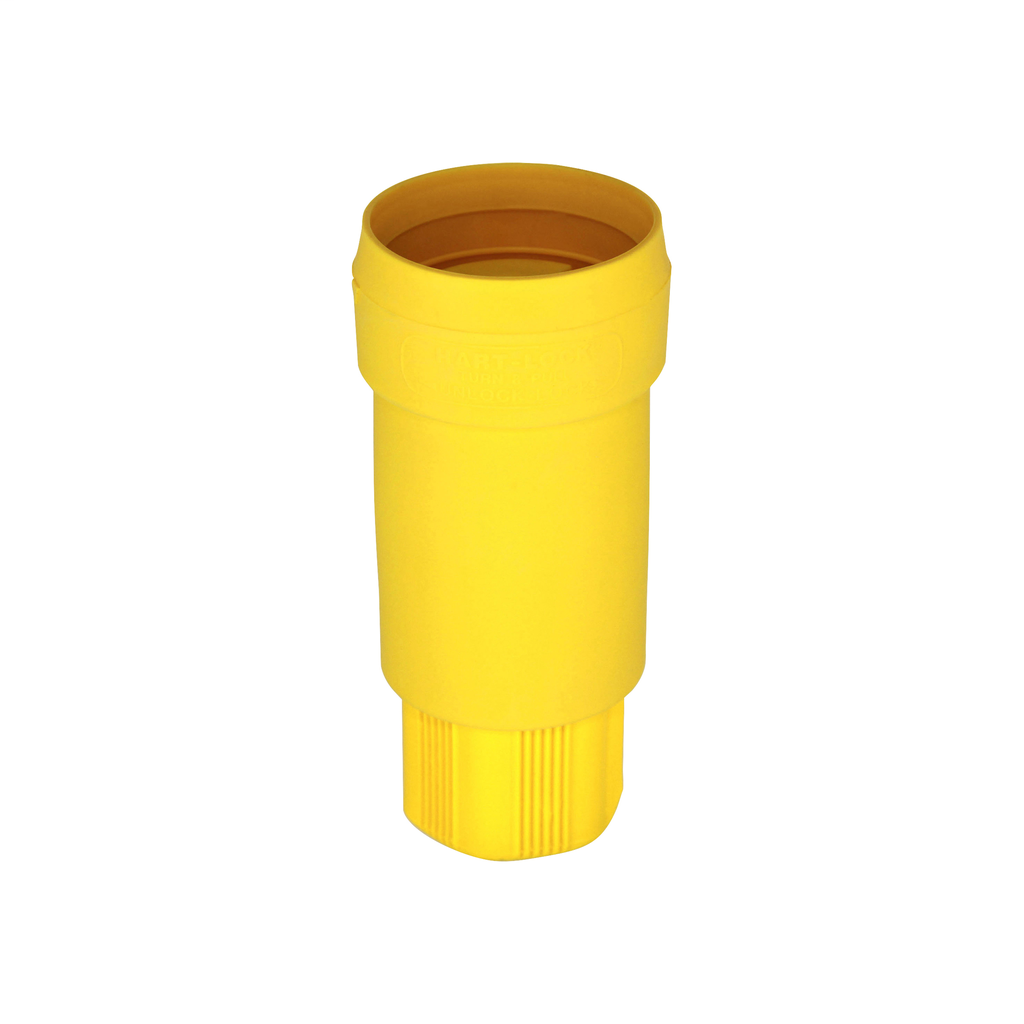

EWD 25W47 Conn WT 15A 125V 2P3W H/L
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually available within 9 to 13 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # 25W47
Viking Electric Part # 4878

Specifications

  • Height: 5.89 IN
  • Length: 1.78 IN
  • Width: 3.55 IN
  • Weight: .17 LB
  • Type: Complex environment
  • Allowable Wire Size: #18-10 AWG
  • Amperage Rating: 15A
  • Application: Industrial
  • Voltage Rating: 125V
  • Wiring Method: Back
  • Color: Yellow
  • Environmental Resistance: Watertight
  • Nema Configuration: L5-15
  • Number Of Poles: Two-pole
  • Number Of Wires: Three-wire, grounding
  • Material: Santoprene thermoplastic elastomeric
  • Cord Diameter: 0.3 to 0.65 in

Categories

Overview

UPC 04089363102
Long Description Eaton Arrow Hart watertight locking connector, #18-10 AWG, 15A, Industrial, 125V, Back wiring, Yellow, Watertight, L5-15, Two-pole, Three-wire, grounding, Santoprene thermoplastic elastomeric, 0.3 to 0.65 in
GTiN 00040893631028
Length 9 in
Width 3.55 in
Color Yellow
Voltage 125 Volt
Type Watertight
Material Santoprene Thermoplastic Elastomeric
Applications For Industrial Applications
Height 5.89 in
Weight .17 lb
Family Brand Name Eaton
Amperage 15 Amp
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Arrow Hart, Hart Lock
Diameter 0.3 - 0.65 in
Number of Conductors 3
Conductor Size 18-10 AWG
Temperature Rating -40 to 75 C
Number of Ports 2
Contact Material Nickel Plated
