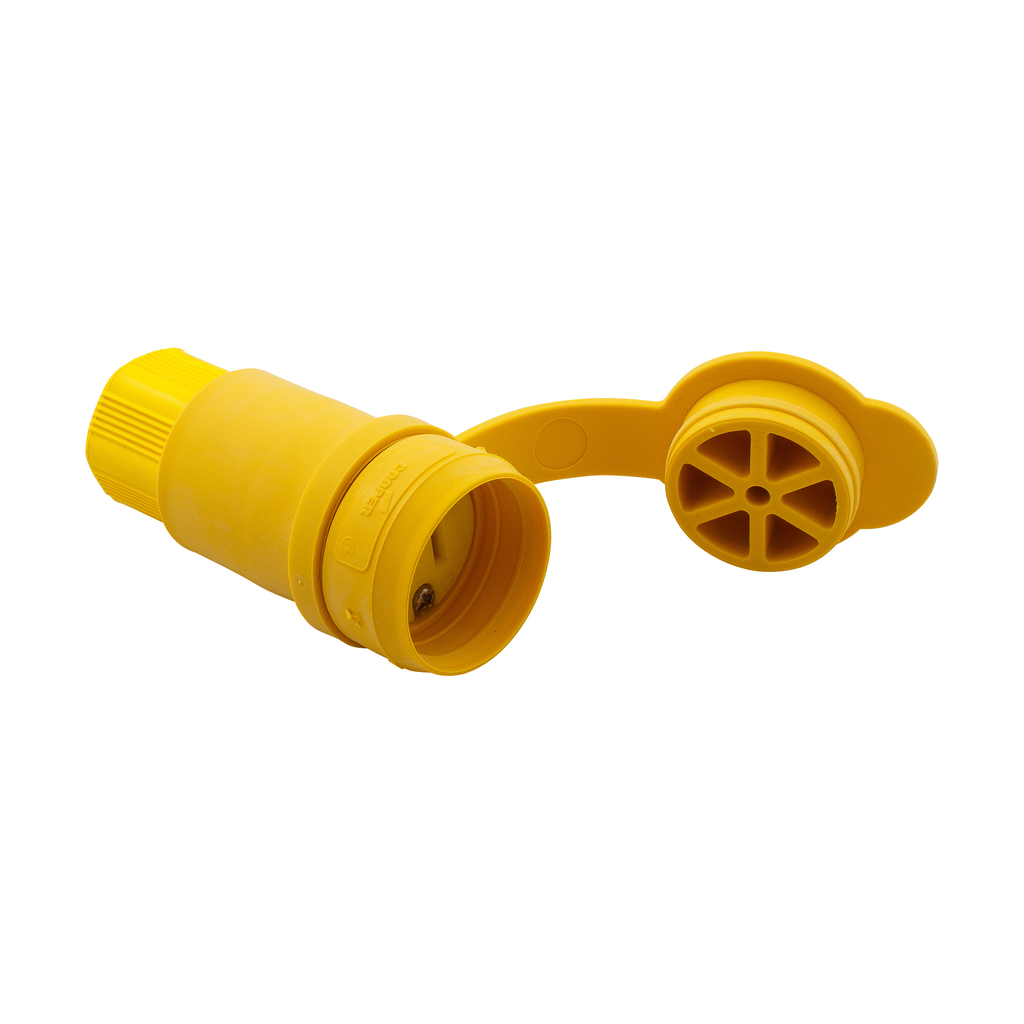

EWD 15W47 Conn WT 15A 125V 2P3W Str
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
Usually available within 10 to 16 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # 15W47
Viking Electric Part # 2938

Specifications

  • Special Features: Watertight
  • Color: Yellow
  • Device Type: Connector
  • Face/Body Material: Santoprene thermoplastic elastomer
  • Wiring Method: Back wire
  • Material: Thermoplastic
  • Allowable Wire Size: #18-10 AWG
  • Amperage Rating: 15A
  • Number Of Poles: Two-pole
  • Contact Material: Nickel-plated brass
  • Type: Complex environment
  • Device Grade: Watertight special use
  • Nema Configuration: 5-15R
  • Style Type: Straight body
  • Design Type: Straight blade
  • Environmental Resistance: Wet
  • Connection Type: Screw
  • Number Of Wires: Three-wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Cord Range: 0.30-0.65" in diameter
  • Voltage Rating: 125V
  • Application: Industrial

General

  • UPC: 040893630946
  • Product Length/Depth: 1.69 IN
  • Product Height: 2.78 IN
  • Product Width: 1.69 IN
  • Product Weight: .34 LB
  • Warranty: Refer to warranty document.
  • Certifications: cULus Listed

Categories

Overview

UPC 04089363094
Long Description Industrial grade watertight connector with straight blade. Santoprene elastomeric exterior provides superior performance in complex environments. Integrated connector closure cap provides watertight protection when not in use. Glass reinforced nylon interior provides strength and durability. Nickel-plated blades, contacts and terminal screws provide corrosion resistance. Clear terminal cover allows for easy inspection of conductors and terminations. Neoprene grommet ensures watertight seal at cord entrance.
GTiN 00040893630946
Length 1.69 in
Width 1.69 in
Color Yellow
Voltage 125 Volt
Type Watertight
Material Thermoplastic
Applications For Industrial use
Height 2.78 in
Weight .34 lb
Wire Size 18-10 AWG
Connection Type Screw Terminal
Body Material Nylon
Temperature Rating -40 To 75 C
Family Brand Name Eaton
NEMA 5-20P
Amperage 15 Amp
Number of Poles 2 Pole
Number of Wires 3
Shell Material Santoprene[T] Thermoplastic Elastomeric Over Polypropylene
Sub Brand Arrow Hart
Diameter 1.69 in
Number of Conductors 3
Conductor Size 18-10 AWG
Number of Ports 2
Contact Material Nickel Plated Brass
