EWD 14W33 Plug WT 20A 125V 2P3W Str
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually available within 6 to 8 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # 14W33
Viking Electric Part # 2588

Specifications

  • Height: 3.44 IN
  • Length: 1.81 IN
  • Width: 1.81 IN
  • Special Features: Watertight
  • Allowable Wire Size: #14 to 10 AWG
  • Amperage Rating: 20A
  • Voltage Rating: 125V
  • Color: Yellow
  • Contact Material: Nickel-plated
  • Design Type: Plug
  • Nema Configuration: 5-20P
  • Number Of Poles: Two-pole
  • Number Of Wires: Three-wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Cord Range: 0.30-0.65" in diameter
  • Material: Thermoplastic

Overview

UPC 04089363097

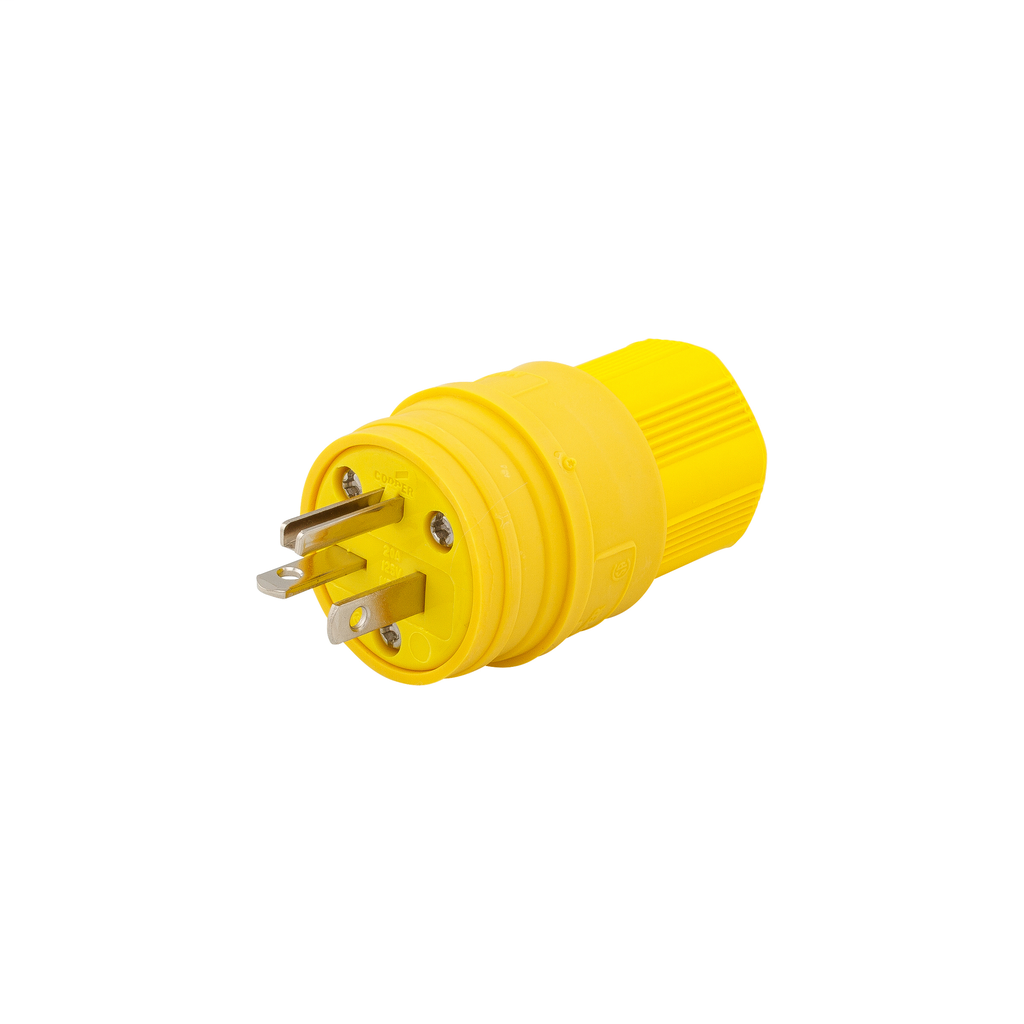

Long Description Industrial grade watertight plug with straight blade. Santoprene elastomeric exterior provides superior performance in complex environments. Integrated connector closure cap provides watertight protection when not in use. Glass reinforced nylon interior provides strength and durability. Nickel-plated blades, contacts and terminal screws provide corrosion resistance. Clear terminal cover allows for easy inspection of conductors and terminations. Neoprene grommet ensures watertight seal at cord entrance.
GTiN 00040893630977
Length 1.81 in
Width 1.81 in
Color Yellow
Voltage 125 Volt
Type Residential
Material Thermoplastic
Applications ELASTOMERIC PRODUCTS
Height 3.44 in
Wire Size 18-10 AWG
Cord Range 0.30 - 0.65 in
Standard UL
Family Brand Name Eaton
NEMA 5-20P
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Eaton Wiring Devices
