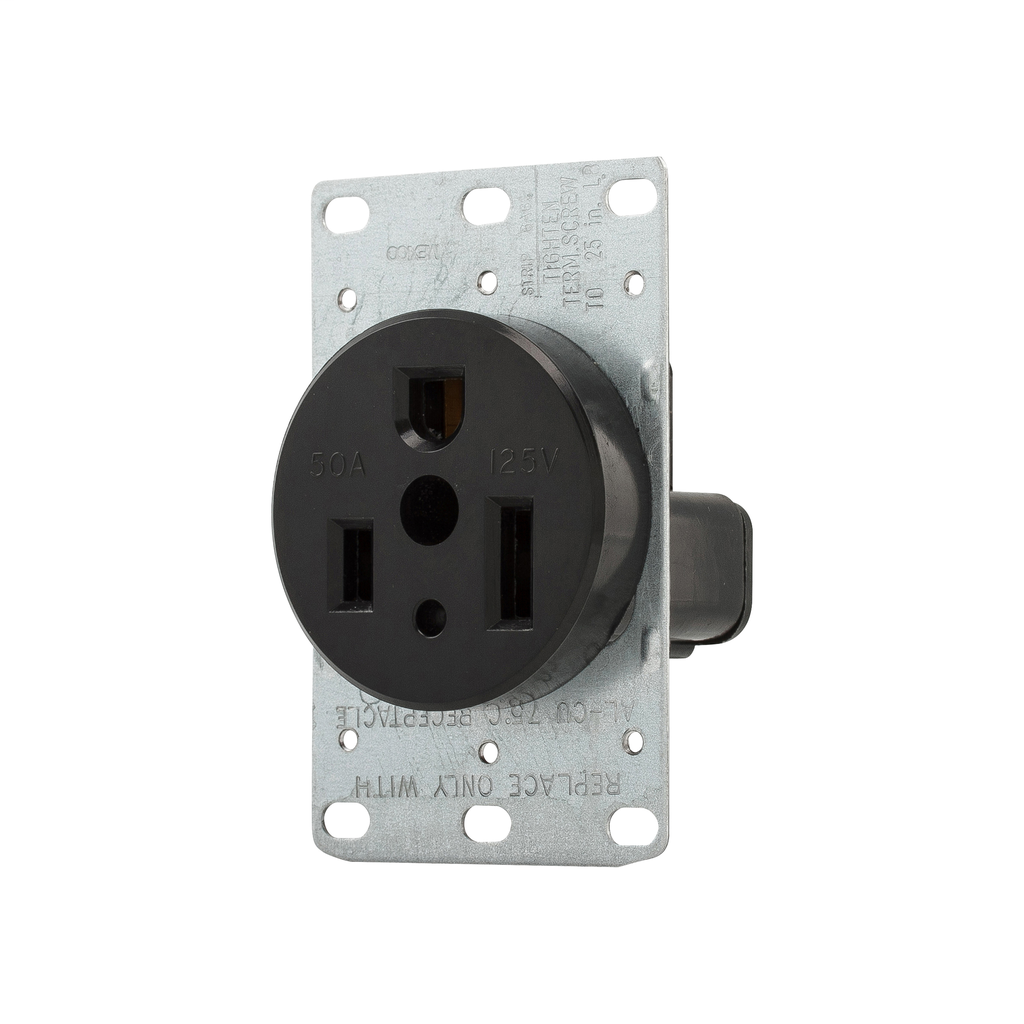

Arrow Hart Wiring 1253-BOX 50 Amp 125 VAC 2-Pole 3-Wire NEMA 5-50R Black Power Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually available within 10 to 16 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # 1253-BOX
Viking Electric Part # 2059

Specifications

  • Mounting Type: Flush
  • Color: Black
  • Wiring Method: Back
  • Material: Glass-filled nylon
  • Allowable Wire Size: #12 - 4 AWG
  • Amperage Rating: 50A
  • Number Of Poles: Two-pole
  • Nema Configuration: 5-50R
  • Used With: A41
  • Design Type: Receptacle
  • Connection Type: Screw
  • Style: Power
  • Number Of Wires: Three-wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Voltage Rating: 125V

General

  • UPC: 032664306600
  • Product Length/Depth: 3.88 IN
  • Product Height: 2.25 IN
  • Product Width: 2.94 IN
  • Product Weight: .35 LB
  • Compliances: RoHS Compliant
  • Certifications: CSA Certified

Categories

Overview

UPC 03266430660
Long Description Commercial Power Receptacle 50A, 125V NEMA 5-50 2-Pole/3-Wire. Heavy duty design and construction make Arrow Hart power devices ideal for any high amperage industrial or commercial power connectivity application.
GTiN 00032664306600
Length 3.88 in
Width 2.94 in
Color Black
Voltage 125 Volt
Type Single,Straight Blade
Insulation Type Impact Resistant Thermoplastic
Material Urea, Impact Resistant Thermoplastic
Conductor Size 10-4 AWG
Applications NON-RESI RECEPTACLE
Mounting Type Flush
Height 2.25 in
Grade Commercial
Weight .35 lb
Style Power
Wire Size 10-4 AWG
Standard UL
Connection Type Back Wire
Wattage 3 Watt
Family Brand Name Cooper Industries
Receptacle Type Grounding
NEMA 5-50R
Amperage 50 Amp
Dielectric Strength 2000 V
Blade Dimensions 1.81 x 2.5 x 3.28 in
Wiring Method Back
Environmental Conditions Indoor Use Only
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Arrow Hart
