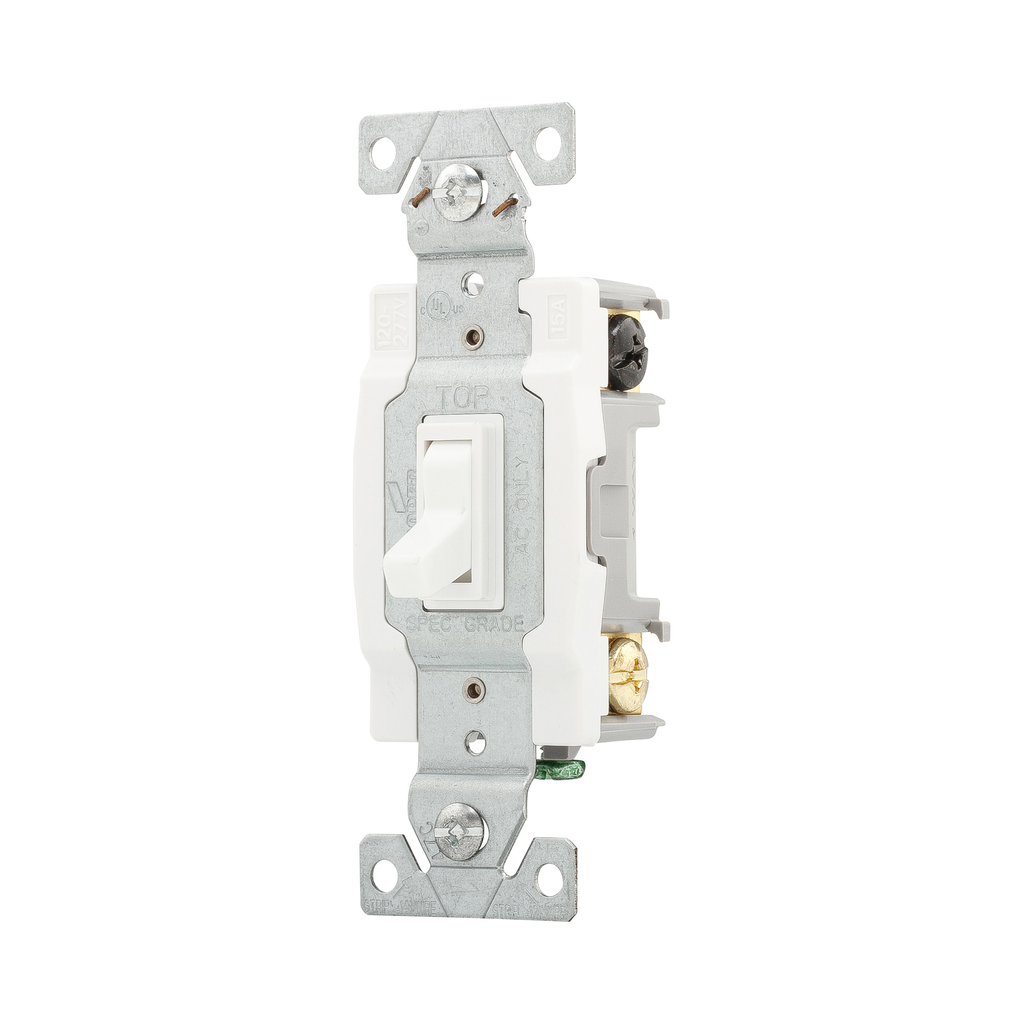

EWD 1242-7W-BOX Switch Toggle 4Way
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually available within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # 1242-7W-BOX
Viking Electric Part # 234287

Specifications

  • Height: 3.28 IN
  • Length: 1.31 IN
  • Width: .88 IN
  • Weight: .19 LB
  • Special Features: Box
  • Type: Toggle switch
  • Allowable Wire Size: #14-10 AWG
  • Amperage Rating: 15A
  • Application: Residential
  • Mounting Type: Wall
  • Voltage Rating: 120V
  • Wiring Method: Side and push
  • Connector Type: Grounding
  • Color: White
  • Number Of Poles: Two-pole
  • Number of Ways: Four-Way
  • Switch Type: Four-way
  • Material: Polycarbonate

Categories

Overview

UPC 03266475016
Long Description Eaton toggle switch, #14-10 AWG, 15A, Wall, 120V, Side and push, Grounding, White, Four-way, Polycarbonate
GTiN 00032664750168
Length 1.31 in
Width .88 in
Color White
Operating Temperature -20 to 60 C
Voltage 120 Volt
Type Grounding, 4-Way
Material Polycarbonate/PVC/Thermoplastic
Applications STD GRADE SWITCH
Mounting Type Wall
Height 3.28 in
Weight .19 lb
Connection Type Screw
Family Brand Name Eaton
Actuator Framed Toggle
Contact Configuration Switches
Amperage 15 Amp
Number of Poles 1 Pole
Sub Brand Arrow Hart
Conductor Size 14-10 AWG
Grade Residential
Blade Dimensions 1.31 in W x 1.05 in D
Operating Cycles 30000
