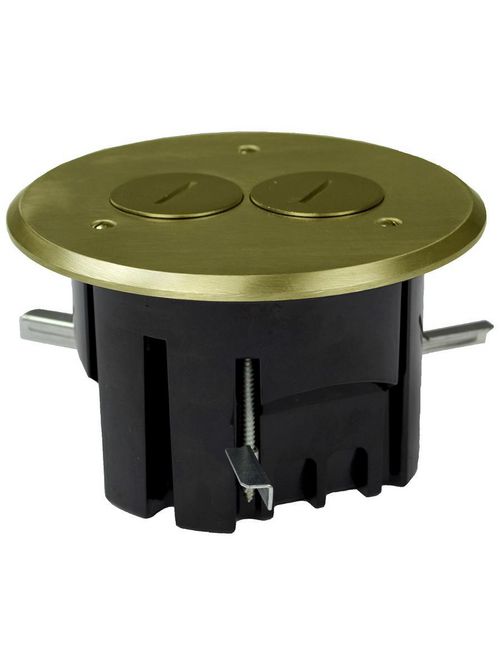

Allied Moulded Products FB-3 Thermoplastic Floor Box 25 In Round Brass Cover Duplex Device

5 Available for Delivery

Order by for Delivery

Usually available for pickup within 24 Hours

Adding...

Already a Customer? Log in to view your pricing

Manufacturer	Allied Moulded Products
Mfg Catalog #	FB-3
Viking Electric Part #	144724

Features

Designed for use in wood floor construction and can be installed with multiple floor substrate materials, meets scrub-water exclusion test, tamper resistant receptacle, simple exterior shape for easy cut-in application

Specifications

Catalog #: FB-3
Width: 3.94 in.
Depth: 3.00 in.
Volume: 24.5 cu. in.
Carton Quantity: 6
Carton Weight: 10 lb.
UPC: 085339941255
UNSPSC: 39121307
Patents: U.S. Patent No. 6,365,831 B1
Country of Origin: China
Color: Black
Material: Polycarbonate box and brass cover
Mounting: Metal wing brackets/nonmetal flange floor or ceiling compression

Additional Materials

Closed cell rubber gasket
Galvanized steel dust plate with plated carbon steel fasteners
Nitrile O-ring
Nonmetallic pop-in cable clamp
Plated carbon steel fasteners

Application

Floor box assembly for residential wood floor cut-in application for use with nonmetallic sheathed cable. Used in areas of the home with large floor space openings where additional electric outlets are required by National Electrical Code to minimize long extension cord runs.

Standards

ANSI / UL514C: File No. QCMZ.E30594

FLOOR BOX 714L

Related Products & Accessories

FB-BRPLG
FB-3N
FB-4
FB-3DB
FB-3CVR
FB-CAK

Overview

UPC	08533994125
Long Description	24.5 Cu. In. Round floor box assembly with a brass duplex device cover - designed for use in wood floor construction and can be installed with multiple floor substrate materials, meets scrub-water exclusion test, tamper resistant receptacle, simple exterior shape for easy cut-in application - Floor box assembly for residential wood floor cut-in application for use with nonmetallic sheathed cable. Used in areas of the home with large floor space openings where additional electric outlets are required by National Electrical Code to minimize long extension cord runs - Polycarbonate box, brass cover, galvanized steel dust plate, nonmeatallic device with copper terminals and brass ground, closed cell rubber gasket - Size: Box - Dia=3.936", Depth=3.0" Cover - Dia=5.25", Thickness=.217" - Mount with Metal wing brackets/nonmetal flange floor or ceiling compression
GTiN	00085339941255
Width	3.94 in
Size	Box - Dia=3.936", Depth=3.0" Cover - Dia=5.25", Thickness=.217"
Color	Black
Type	Round Floor Box Assembly With A Brass Duplex Device Cover
Material	Brass,Copper,Galvanized Steel Dust Plate,Nonmetallic,Polycarbonate,Rubber
Applications	Floor box assembly for residential wood floor cut-in application for use with nonmetallic sheathed cable. Used in areas of the home with large floor space openings where additional electric outlets are required by National Electrical Code to minimize long extension cord runs.
Mounting Type	Metal Wing Brackets/nonmetal Flange Floor Or Ceiling Compression
Depth	3 in
Standard	UL 514 C
Family Brand Name	Allied Moulded
Construction	Cast Cover,Injection Molded Box
Cover Type	Grounded
Cable Entry	Four Molded-in Speed Klamps And Two 1/2" Knockouts
Cover Material	Metal
Box Type	Non-Conductive,Non-Metallic
CA Prop65 Warning	This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
