|Manufacturer||Allied Moulded Products|
|Mfg Catalog #||AMP864LF|
|Viking Electric Part #||338444|

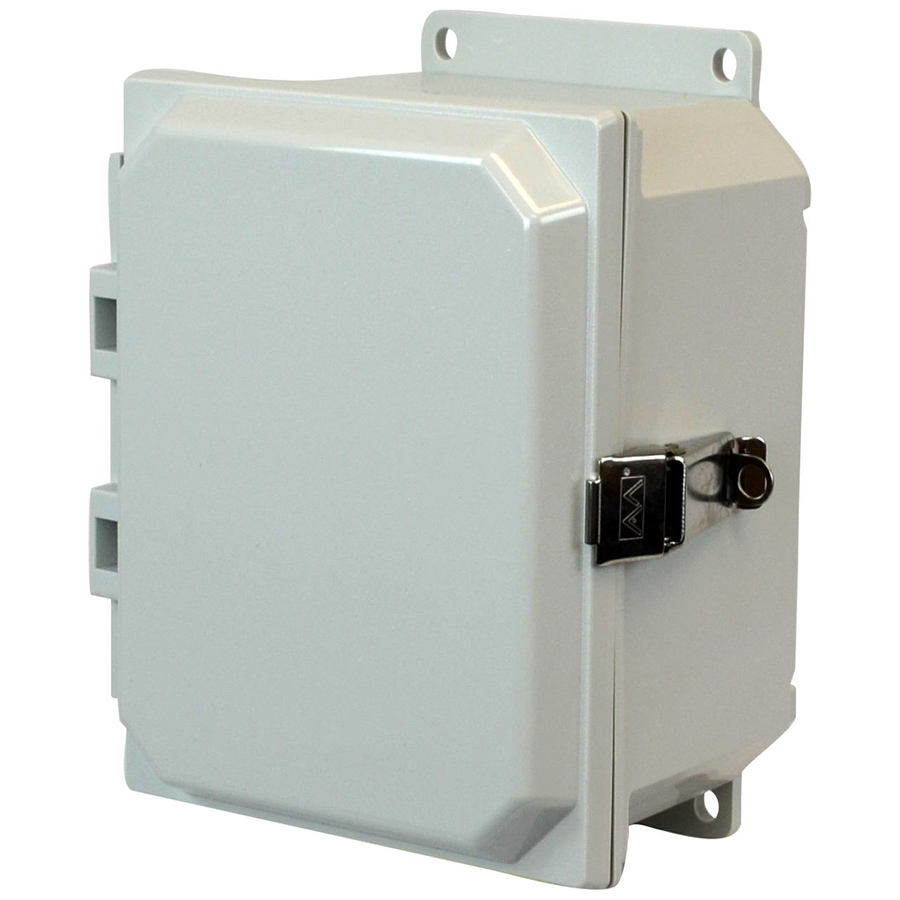

Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus nonmetallic mounting brackets and a gasket system encased in a continuous channel on the cover.
Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
|Long Description||Type:NEMA 4X Type: Nonmetallic Enclosure Special Features:Hinged snap latch Type:, flush-aesthetically pleasing and opaque cover design with FIP formed-in-place polyurethane gasket Application:Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less Material:Polycarbonate - thermoplastic Size:A=7.94", B=6.16", C=3.98" plus .87" raised cover, usable depth=4.18" Color:RAL 7035 - Gray Mounting:Nonmetal flange fastened to back side brass insert|
|Size||A=7.94", B=6.16", C=3.98" plus .87" raised cover, usable depth=4.18"|
|Type||NEMA 4X Type Nonmetallic Enclosure|
|Material||Polycarbonate - Thermoplastic|
|Applications||Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less|
|Mounting Type||Nonmetal Flange Fastened To Back Side Brass Insert|
|Standard||UL 508A - Industrial Control Panels|
|Family Brand Name||Allied Moulded|
