Manufacturer Allied Moulded Products
Mfg Catalog # AMP1648LF
Viking Electric Part # 330884

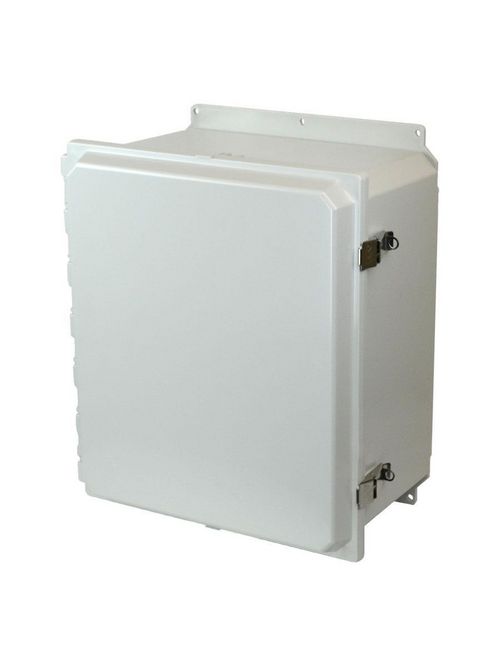

Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus nonmetallic mounting brackets and a gasket system encased in a continuous channel on the cover.


  • Cover Type: Metal Snap Latch Hinged Solid/Opaque Cover
  • Brand: POLYLINE
  • Catalog #: AMP1648LF
  • Height: 15.98 in.
  • Width: 13.98 in.
  • Depth: 7.81 in.
  • Usable Depth: 8.27 in.
  • Volume: 1,968 cu. in.
  • Carton Quantity: 1
  • Carton Weight: 9 lb.
  • UPC: 085339991281
  • UNSPSC: 39121324
  • Patents: U.S. Patent No. 7,572,975
  • Country of Origin: United States of America
  • Color: RAL 7035 - Gray
  • Material: Polycarbonate box and cover
  • Mounting: Nonmetal flange fastened to back side brass insert
  • Enclosure Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit

Additional Materials

  • 316 stainless steel external hardware (hinges, latches and fasteners)
  • Polycarbonate mounting brackets
  • Plated carbon steel internal hardware
  • Brass inserts
  • Polyurethane (FIP) Formed-In-Place gasket system


Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.


UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175

CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Complies with:

  • EN / IEC 60204-1 and 60529 Type IP66
  • RoHS directive

Related Products & Accessories

  • PLPVC164
  • P164
  • HFPP164
  • AM1648L
  • AMHS075
  • AMP1648CCLF
  • PA164
  • AMU1648LF


UPC 08533999128
Long Description Type:NEMA 4X Type: Nonmetallic Enclosure Special Features:Hinged snap latch Type:, flush-aesthetically pleasing and opaque cover design with FIP formed-in-place polyurethane gasket Application:Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less Material:Polycarbonate - thermoplastic Size:A=15.98", B=13.98", C=7.81" plus .87" raised cover, usable depth=8.24" Color:RAL 7035 - Gray Mounting:Nonmetal flange fastened to back side brass insert
GTiN 00085339991281
Width 13.98 in
Size A=15.98", B=13.98", C=7.81" plus 1.38" raised cover, usable depth=8.24"
Color Gray
Type NEMA 4X Type Nonmetallic Enclosure
Insulation Type Non-Conductive,Non-Metallic
Material Polycarbonate - Thermoplastic
Applications Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less
Mounting Type Nonmetal Flange Fastened To Back Side Brass Insert
Depth 7.81 in
Height 15.98 in
Standard UL 508A - Industrial Control Panels
Family Brand Name Allied Moulded
Construction Injection Molded
