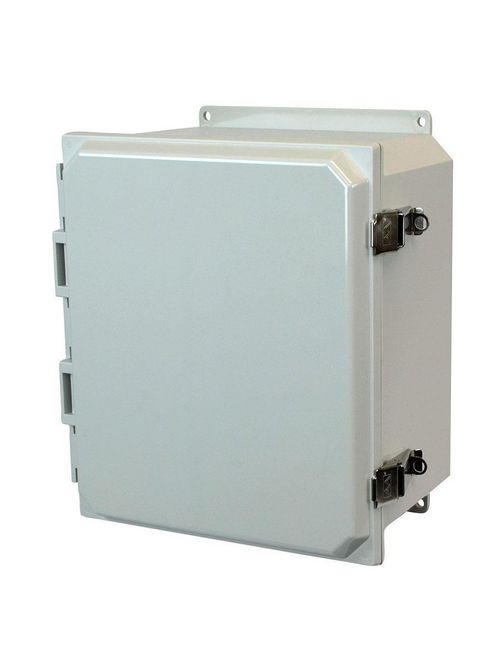

ALLIED AMP1426LF 14X12X6 PC ENCL HN
Product image thumbnail 0
Product image thumbnail 1
Usually available within 12 to 18 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # AMP1426LF
Viking Electric Part # 330881

Features

Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus nonmetallic mounting brackets and a gasket system encased in a continuous channel on the cover.

Specifications

  • Cover Type: Metal Snap Latch Hinged Solid/Opaque Cover
  • Brand: POLYLINE
  • Catalog #: AMP1426LF
  • Height: 13.85 in.
  • Width: 12.07 in.
  • Depth: 5.94 in.
  • Usable Depth: 5.99 in.
  • Volume: 1161 cu. in.
  • Carton Quantity: 1
  • Carton Weight: 8 lb.
  • UPC: 085339993582
  • UNSPSC: 39121324
  • Patents: U.S. Patent No. 7,572,975
  • Country of Origin: United States of America
  • Color: RAL 7035 - Gray
  • Material: Polycarbonate box and cover
  • Mounting: Nonmetal flange fastened to back side brass insert
  • Enclosure Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit

Additional Materials

  • 316 stainless steel external hardware (hinges, latches and fasteners)
  • Polycarbonate mounting brackets
  • Plated carbon steel internal hardware
  • Brass inserts
  • Polyurethane (FIP) Formed-In-Place gasket system

Application

Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.

Standards

UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175

CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Complies with:

  • EN / IEC 60204-1 and 60529 Type IP66
  • RoHS directive

Related Products & Accessories

  • AM1426L
  • PLA142
  • PL142
  • AMU1426LF
  • AMPOLEMNT12
  • PLPVC142
  • AMP1426CCLF
  • AMHS075
  • HFPP142
  • AMP1426NLF

Overview

UPC 08533999358
Long Description Type:NEMA 4X Type: Nonmetallic Enclosure Special Features:Hinged snap latch Type:, flush-aesthetically pleasing and opaque cover design with FIP formed-in-place polyurethane gasket Application:Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less Material:Polycarbonate - thermoplastic Size:A=13.94", B=12.16", C=5.98" plus .87" raised cover, usable depth=6.18" Color:RAL 7035 - Gray Mounting:Nonmetal flange fastened to back side brass insert
GTiN 00085339993582
Width 12.07 in
Size A=13.94", B=12.16", C=5.98" plus .87" raised cover, usable depth=6.18"
Color Gray
Type NEMA 4X Type Nonmetallic Enclosure
Insulation Type Non-Conductive,Non-Metallic
Material Polycarbonate - Thermoplastic
Applications Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less
Mounting Type Nonmetal Flange Fastened To Back Side Brass Insert
Depth 5.94 in
Height 13.85 in
Family Brand Name Allied Moulded
Construction Injection Molded
Sub Brand POLYLINE
