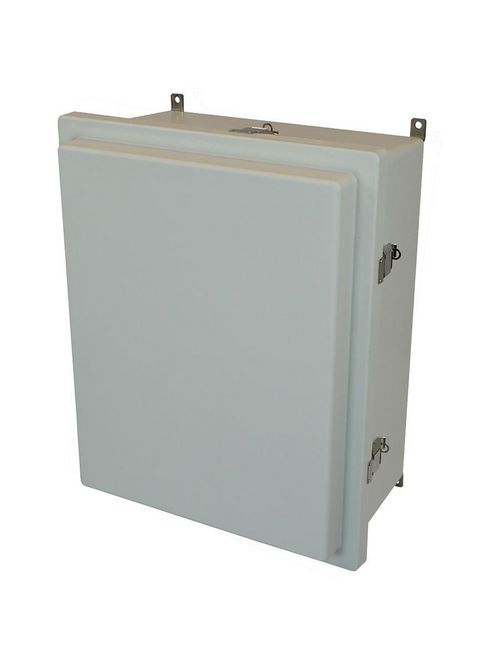

Allied Moulded Products AM2068RL 20 x 16 x 8 Inch NEMA 4X Fiberglass Enclosed Raised Quick Release Latch Hinged Cover
Product image thumbnail 0
Product image thumbnail 1
Usually available within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # AM2068RL
Viking Electric Part # 342044

Features

Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous channel on the cover.

Specifications

  • Cover Type: Nonmetal Snap Latch Hinged Solid/Opaque Cover
  • Brand: AM Series JIC Sizes
  • Catalog #: AM2068RL
  • Height: 20 in.
  • Width: 16 in.
  • Depth: 8.01 in.
  • Usable Depth: 9.21 in.
  • Volume: 3162 cu. in.
  • Carton Quantity: 1
  • Carton Weight: 20 lb.
  • UPC: 085339920885
  • UNSPSC: 39121324
  • Country of Origin: United States of America
  • Color: RAL 7035 - Gray
  • Material: ULTRAGUARDĀ® Fiberglass reinforced polyester - compression molded SMC box and Cover
  • Mounting: Stainless steel feet fastened to back side brass inserts
  • Enclosure Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit

Additional Materials

  • 316 stainless steel external hardware (hinges, latches and fasteners)
  • 316 stainless steel mounting brackets
  • Plated carbon steel internal hardware
  • Brass inserts
  • Polyurethane (FIP) Formed-In-Place gasket system

Application

Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.

Standards

UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175

CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Complies with:

  • EN / IEC 60204-1 and 60529 Type IP66
  • RoHS directive

Related Products & Accessories

  • AMPOLEMNT16
  • PG206
  • AMU2060L
  • HFP206
  • PA206
  • PF206
  • P206
  • AMHS100
  • AM2068RLW

Overview

UPC 08533992088
Long Description Type:NEMA 4X Type: Nonmetallic Enclosure Special Features:Raised, hinged snap latch Type:, overlapping and opaque cover design with FIP formed-in-place polyurethane gasket system Application:Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less Material:ULTRAGUARD - Fiberglass reinforced polyester - thermoset Size:A=20.00", B=16.00", C=8.13" plus 1.75" raised cover, usable depth=9.21" Color:RAL 7035 - Gray Mounting:Stainless steel feet fastened to back side brass inserts
GTiN 00085339920885
Width 16 in
Size A=20.00", B=16.00", C=8.13" plus 1.75" raised cover, usable depth=9.21"
Color Gray
Type NEMA 4X Type Nonmetallic Enclosure
Insulation Type Non-Conductive,Non-Metallic
Material ULTRAGUARD - Fiberglass Reinforced Polyester - Thermoset
Applications Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less
Mounting Type Stainless Steel Feet Fastened To Back Side Brass Inserts
Depth 8.01 in
Height 20 in
Family Brand Name Allied Moulded
Construction Compression Molded
Sub Brand AM JIC
