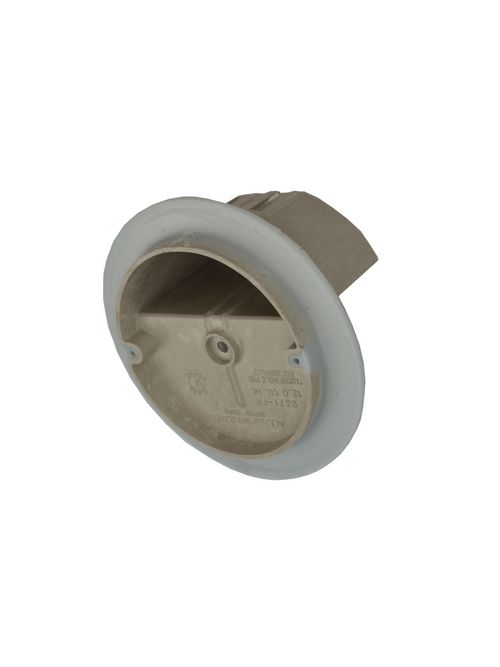

ALLIED 9371-FRV 12 CI 4 IN RND VS 1
Product image thumbnail 0
Product image thumbnail 1
3 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # 9371-FRV
Viking Electric Part # 137173

Features

Polyurethane flange for single drywall offset, 1/2" deep base with side cube wiring capacity, fan/fixture screws for joist mounting, machine tapped fixture holes, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures, Speed "K" Clamps factory installed

Specifications

  • Brand: fiberglassBOX
  • Catalog #: 9371-FRV
  • Width: 4 in.
  • Depth: 2-7/8 in.
  • Volume: 12 cu. in.
  • Round Ceiling Box
  • Carton Quantity: 24
  • Carton Weight: 10 lb.
  • UPC: 085339927051
  • UNSPSC: 39121316
  • Patents: U.S. Patent No. 6,908,003 B2
  • Country of Origin: United States of America
  • Color: Beige/tan
  • Material: Fiberglass reinforced polyester BMC
  • Mounting: Bottom mount
  • Support Rating: 110 lbs fixture support and 70 lbs fan support

Additional Materials

  • Polyvinyl chloride clamps
  • Polyurethane flange
  • Plated carbon steel fasteners

Application

New and old work residential construction 2 HR fire resistive walls and ceilings (70 lbs. fan support and 110 lbs. fixture support), air-sealed electrical fan support box for Energy Star homes

Standards

ANSI / UL 514C: File No. E30594

NEMA OS 4 - Energy Efficient Air-Sealed Boxes for Electrical Applications

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 3 inches

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
  • Distance between boxes in adjacent cavities may be reduced to 5 ½ inches

Overview

UPC 08533992705
Long Description 12.0 Cu. In. 4" dia. round fan support box for use with nonmetallic sheathed cable - Polyurethane flange for single drywall offset, 1/2" deep base with side cube wiring capacity, fan/fixture screws for joist mounting, ground screw - New and old work residential construction 2 HR fire resistive walls and ceilings (70 lbs. fan support and 110 lbs. fixture support) - Fiberglass - thermoset box - Size: Depth=1 1/2", Dia=4" - Bottom mount
GTiN 00085339927051
Size Depth=2 7/8", Dia=4", 1/2" deep pan
Color Beige,Tan
Type 4" Dia. Round Fixture Support Box For Use With Nonmetallic Sheathed Cable
Material Fiberglass Reinforced Polyester
Applications New and old work residential construction 2 HR fire resistive walls and ceilings (70 lbs. fan support and 110 lbs. fixture support)
Family Brand Name Allied Moulded
Construction Compression Molded
Cable Entry Two 1/2" Knockouts With Speed "K" Clamp
Sub Brand FIBERGLASSBOX
Width 4 in
Insulation Type Non-Conductive,Non-Metallic
Mounting Type Bottom Mount
Depth 2-7/8 in
Standard UL 514 C
