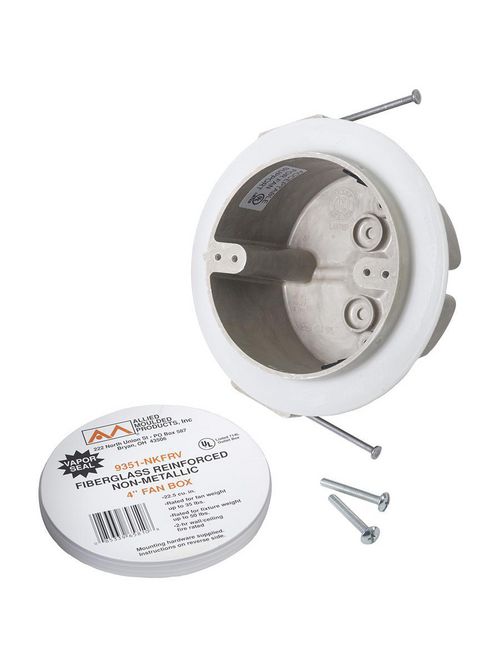

Allied Moulded Products 9351-NKFRV 4 Inch 22.5 Inch  Diameter Side Nail Mount Fan and Fixture Support Box
Product image thumbnail 0
Product image thumbnail 1
Usually available within 48 to 80 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # 9351-NKFRV
Viking Electric Part # 19210

Features

Polyurethane flange for single drywall offset, machine tapped fixture holes, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures, Speed "K" Clamps factory installed

Specifications

  • Brand: fiberglassBOX
  • Catalog #: 9351-NKFRV
  • Width: 4 in.
  • Depth: 2-7/16 in.
  • Volume: 22.5 cu. in.
  • Type of Installation: New Work
  • Round Ceiling Box
  • Carton Quantity: 48
  • Carton Weight: 28 lb.
  • UPC: 085339658108
  • UNSPSC: 39121316
  • Patents: U.S. Patent No. 6,908,003 B2
  • Country of Origin: United States of America
  • Color: Beige/tan
  • Material: Fiberglass reinforced polyester BMC
  • Mounting: Nail-on with fetter ring nails
  • Support Rating: 50 lbs fixture support and 35 lbs fan support

Additional Materials

  • Carbon steel fasteners
  • Polyvinyl chloride clamps
  • Polyurethane flange
  • Plated carbon steel fasteners

Application

New work residential construction 2 HR fire resistive walls and ceilings (35 lbs. fan support and 50 lbs. fixture support) - air-sealed electrical fan support box for Energy Star homes

Standards

ANSI / UL 514C: File No. E30594

NEMA OS 4 - Energy Efficient Air-Sealed Boxes for Electrical Applications

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 3 inches

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

  • Distance between boxes in adjacent cavities may be reduced to 5 ½ inches
  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

Overview

UPC 08533965810
Long Description 22.5 Cu. In. 4" dia. round fan support box for use with nonmetallic sheathed cable - Polyurethane flange for single drywall offset, machine tapped fixture holes, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures - New work residential construction 2 HR fire resistive walls and ceilings (35 lbs. fan support and 50 lbs. fixture support) - air tight - Fiberglass reinforced polyester - thermoset box - Size: Depth=2 7/16", Dia=4" - Mount with Nail-on with fetter ring nails - Speed Klamps factory installed
GTiN 00085339658108
Width 4 in
Size Depth=2 7/16", Dia=4"
Color Beige,Tan
Type 4" Dia. Round Fan Support Box For Use With Nonmetallic Sheathed Cable
Insulation Type Non-Conductive,Non-Metallic
Material Fiberglass Reinforced Polyester
Applications New work residential construction 2 HR fire resistive walls and ceilings (35 lbs. fan support and 50 lbs. fixture support) - air tight
Mounting Type Nail-on With Fetter Ring Nails
Depth 2-7/16 in
Standard UL 514 C
Family Brand Name Allied Moulded
Construction Injection Molded
Cable Entry Four "no Tools" Knockouts With 2 Speed "K" Clamps
Sub Brand FIBERGLASSBOX
