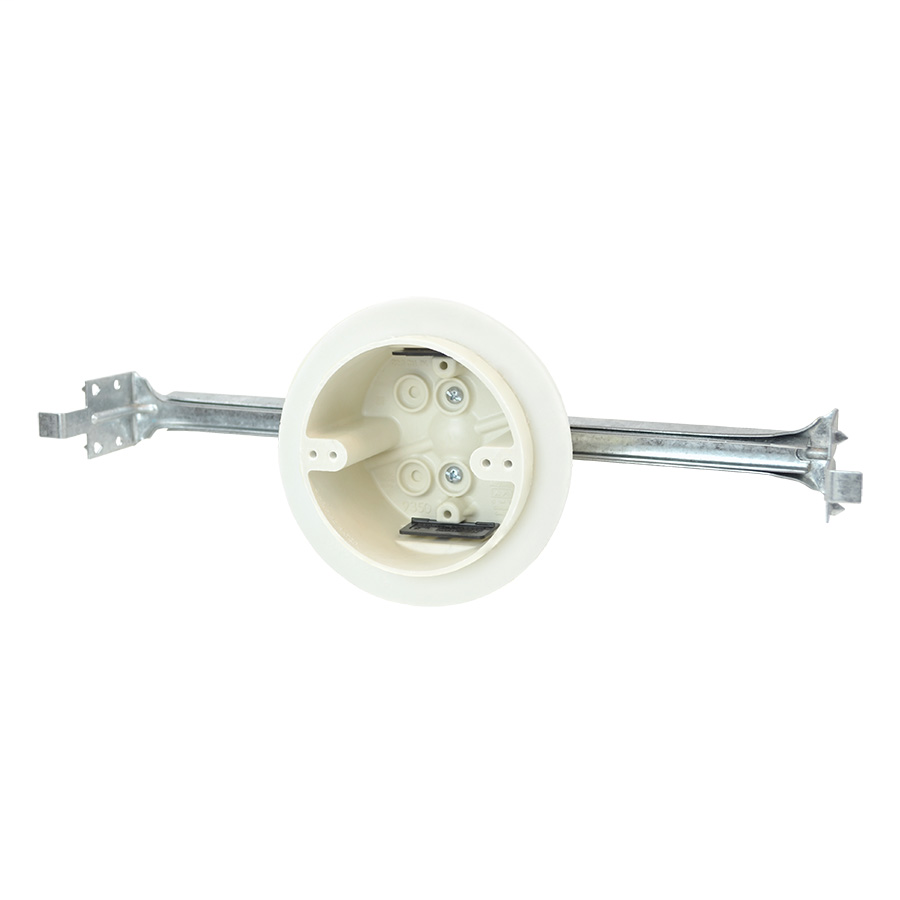

Allied Moulded Products 9350-BHKV 2-3/8 x 4 Inch 22.5 In Fiberglass Round Ceiling Fixture Outlet Box
Product image thumbnail 0
Product image thumbnail 1
Usually available within 45 to 73 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # 9350-BHKV
Viking Electric Part # 19204

Features

Polyurethane flange for single drywall offset, machine tapped fixture holes, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures, Speed "K" Clamps factory installed

Specifications

  • Brand: fiberglassBOX
  • Catalog #: 9350-BHKV
  • Width: 4 in.
  • Depth: 2-7/16 in.
  • Volume: 22.5 cu. in.
  • Type of Installation: New Work
  • Round Ceiling Box
  • Carton Quantity: 18
  • Carton Weight: 26 lb.
  • UPC: 085339881247
  • UNSPSC: 39121316
  • Patents: U.S. Patent No. 6,908,003 B2
  • Country of Origin: United States of America
  • Color: Beige/tan
  • Material: Fiberglass reinforced polyester BMC
  • Mounting: Adjustable bar hanger - 16" to 24" on center joist application
  • Support Rating: 50 lbs fixture support

Additional Materials

  • Galvanized steel brackets and plated carbon steel fasteners
  • Polyvinyl chloride clamps
  • Polyurethane flange

Application

New work residential construction 2 HR fire resistive walls and ceilings (50 lbs. fixture support) - air-sealed electrical outlet box for envelop walls and ceilings in Energy Star homes

Standards

ANSI / UL 514C: File No. E30594

NEMA OS 4 - Energy Efficient Air-Sealed Boxes for Electrical Applications

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 3 inches

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

  • Distance between boxes in adjacent cavities may be reduced to 5 ½ inches
  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

Overview

UPC 08533988124
Long Description 22.5 Cu. In. 4" dia. round fixture support box for use with nonmetallic sheathed cable - Polyurethane flange for single drywall offset, machine tapped fixture holes, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures - New work residential construction 2 HR fire resistive walls and ceilings (50 lbs. fixture support) - air tight - Fiberglass reinforced polyester - thermoset box with galvanized steel adjustable bar hanger - Size: Depth=2 7/16", Dia=4" - Mount with Adjustable bar hanger - 16" to 24" on center joist application - Speed Klamps factory installed
GTiN 00085339881247
Width 4 in
Size Depth=2 7/16", Dia=4"
Color Beige,Tan
Type 4" Dia. Round Fixture Support Box For Use With Nonmetallic Sheathed Cable
Insulation Type Nonconductive Nonmetallic
Material Fiberglass Reinforced Polyester - Thermoset Box With Galvanized Steel Adjustable Bar Hanger
Applications New work residential construction 2 HR fire resistive walls and ceilings (50 lbs. fixture support) - air tight
Mounting Type Adjustable Bar Hanger - 16" To 24" On Center Joist Application
Depth 2-7/16 in
Family Brand Name Allied Moulded
Construction Injection Molded
Cable Entry Four "no Tools" Knockouts With 2 Speed "K" Clamps
Sub Brand FIBERGLASSBOX
