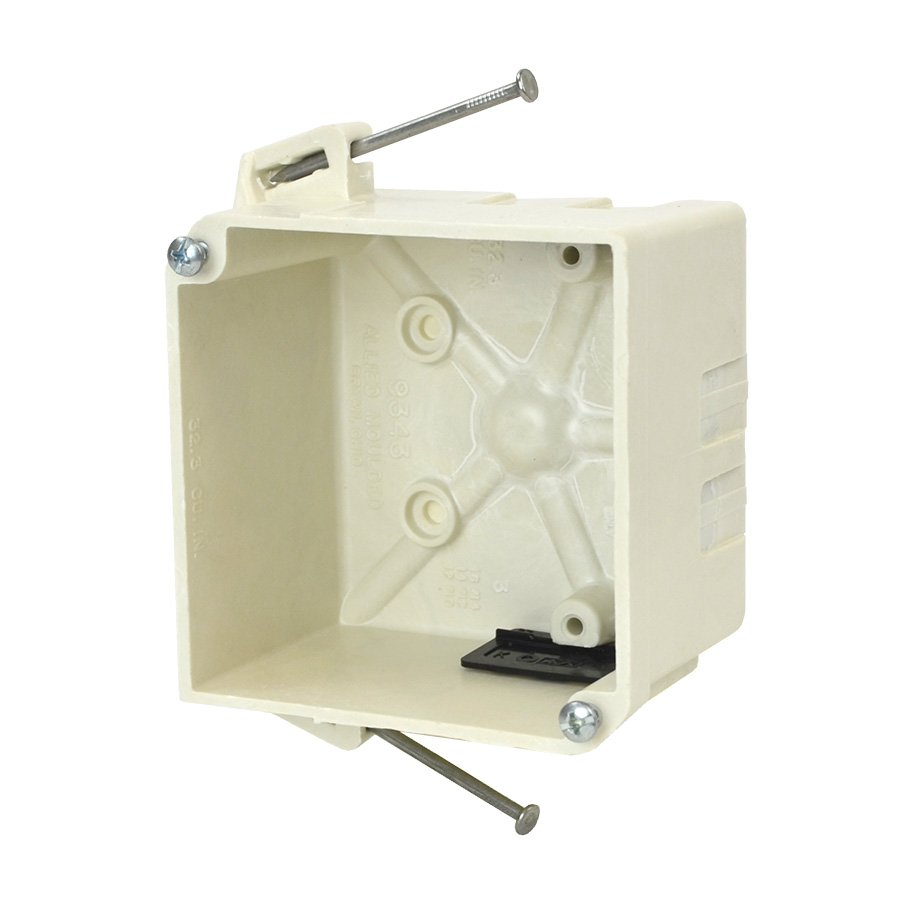

Allied Moulded Products 9343-NK 4 Inch 32.3 In Volume Speed Clamp Square Junction Box
Product image thumbnail 0
Product image thumbnail 1
Usually available within 17 to 27 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # 9343-NK
Viking Electric Part # 19195

Features

Machine tapped cover screw holes, cover screws included, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures, Speed "K" Clamps factory installed

Specifications

  • Brand: fiberglassBOX
  • Catalog #: 9343-NK
  • Height: 4-1/16 in.
  • Width: 4-1/16 in.
  • Depth: 2-1/2 in.
  • Volume: 32.3 cu. in.
  • Type of Installation: New Work
  • Wall Box
  • Carton Quantity: 50
  • Carton Weight: 27 lb.
  • UPC: 085339103745
  • UNSPSC: 39121332
  • Country of Origin: United States of America
  • Color: Beige/tan
  • Material: Fiberglass reinforced polyester BMC
  • Mounting: Angled mid-nails

Additional Materials

  • Carbon steel fasteners
  • Polyvinyl chloride clamps
  • Carbon steel fasteners

Application

In the wall junction box with optional single and two gang plaster ring covers for junction box capacity and device applications - 2 HR fire resistive walls

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 3 inches
  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

Categories

Overview

UPC 08533910374
Long Description 32.3 Cu. In. 4 square inch electrical junction box for use with nonmetallic sheathed cable - Machine tapped cover screw holes, cover screws included, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures - In the wall junction box with optional single and two gang plaster ring covers for junction box capacity and device applications - 2 HR fire resistive walls - Fiberglass reinforced polyester - thermoset box - Size: D=2 1/2", W=4 1/16", H=4 1/16" - Mount with Angled mid-nails - Speed Klamps factory installed
GTiN 00085339103745
Width 4-1/16 in
Size D=2 1/2", W=4 1/16", H=4 1/16"
Color Beige,Tan
Type 4 Square Inch Electrical Junction Box For Use With Nonmetallic Sheathed Cable
Insulation Type Non-Conductive,Non-Metallic
Material Fiberglass Reinforced Polyester
Applications In the wall junction box with optional single and two gang plaster ring covers for junction box capacity and device applications - 2 HR fire resistive walls
Mounting Type Angled Mid-nails
Depth 2-1/2 in
Height 4-1/16 in
Connection Type For Use With 14-2 Through 10-3 Nonmetallic Sheathed Cable With Ground
Family Brand Name Allied Moulded
Construction Injection Molded
Tc Connection For use with 14-2 through 10-3 nonmetallic sheathed cable with ground
Cable Entry Six "no Tools" Knockouts With 2 Speed K Klamps
Sub Brand FIBERGLASSBOX
