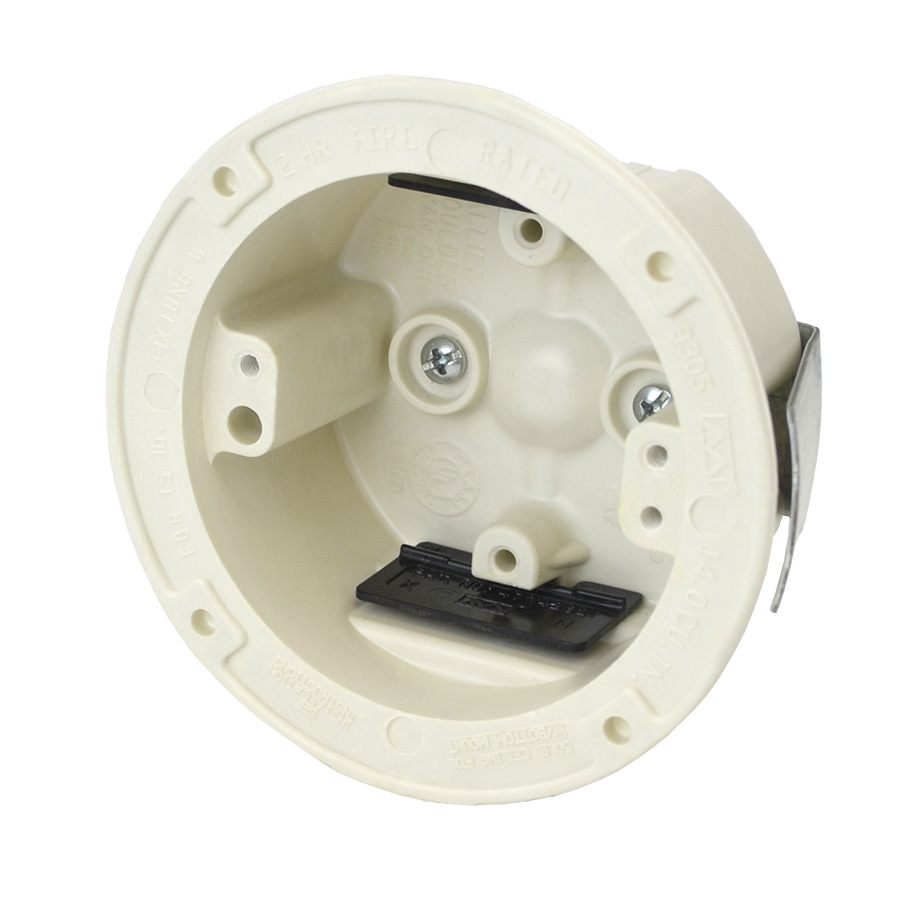

Allied Moulded Products 9305-SK 14 cubic inch 3.5 Inch Diameter Snap Bracket Round Fixture Support Box
Product image thumbnail 0
Product image thumbnail 1
Usually available within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # 9305-SK
Viking Electric Part # 158834

Features

Machine tapped fixture holes, round exterior for easy cut-in, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures, Speed "K" Clamps factory installed

Specifications

  • Brand: fiberglassBOX
  • Catalog #: 9305-SK
  • Width: 3-1/2 in.
  • Depth: 1-3/4 in.
  • Volume: 14 cu. in.
  • Type of Installation: Old Work
  • Wall Box
  • Carton Quantity: 50
  • Carton Weight: 22 lb.
  • UPC: 085339273516
  • UNSPSC: 39121308
  • Country of Origin: United States of America
  • Color: Beige/tan
  • Material: Fiberglass reinforced polyester BMC
  • Mounting: Snap bracket/box flange wall compression
  • Support Rating: 15 lb fixture support

Additional Materials

  • Galvanized steel brackets and plated carbon steel fasteners
  • Polyvinyl chloride clamps

Application

Old work residential construction 2 HR fire resistive walls (15 lbs fixture support)

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 3 inches

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
  • Distance between boxes in adjacent cavities may be reduced to 5 ½ inches

Categories

Overview

UPC 08533927351
Long Description 14.0 Cu. In. 3.5" dia. round fixture support box for use with nonmetallic sheathed cable - Machine tapped fixture holes, round exterior for easy cut-in, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures - Old work residential construction 2 HR fire resistive walls (15 lbs fixture support) - Fiberglass reinforced polyester - thermoset box with galvanized steel snap bracket - Size: Depth=1 3/4", Dia=3 1/2" - Mount with Snap bracket/box flange wall compression - Speed Klamps factory installed
GTiN 00085339273516
Width 3 in
Size Depth=1 3/4", Dia=3 1/2"
Color Beige,Tan
Type 3.5" Dia. Round Fixture Support Box For Use With Nonmetallic Sheathed Cable
Insulation Type Non-Conductive,Non-Metallic
Material Fiberglass Reinforced Polyester,Galvanized Steel,Thermoset
Applications Old work residential construction 2 HR fire resistive walls (15 lbs fixture support)
Mounting Type Snap Bracket/box Flange Wall Compression
Depth 1-3/4 in
Family Brand Name Allied Moulded
Construction Injection Molded
Cable Entry Four "no Tools" Knockouts With 2 Speed "K" Clamps
Sub Brand FIBERGLASSBOX
