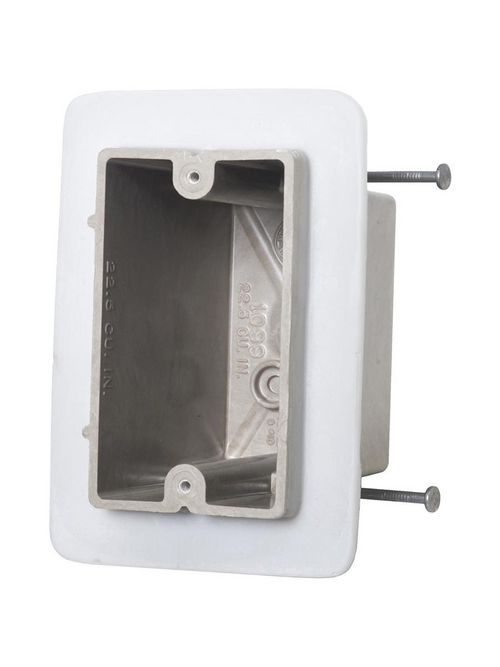

Allied Moulded Products 1099-NV 3-9/16 x 2-1/4 x 3-3/4 Inch 22.5 In 1-Gang Fiberglass Switch/Receptacle Outlet Box
Product image thumbnail 0
Product image thumbnail 1
Usually available within 66 to 110 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # 1099-NV
Viking Electric Part # 1500

Features

Polyurethane flange for single drywall offset, machine tapped device holes, leveling ribs, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures

Specifications

  • Brand: fiberglassBOX
  • Catalog #: 1099-NV
  • Height: 3-27/32 in.
  • Width: 2-1/4 in.
  • Depth: 3-9/16 in.
  • Volume: 22.5 cu. in.
  • Type of Installation: New Work
  • Wall Box
  • Number of Gangs: 1
  • Carton Quantity: 48
  • Carton Weight: 21 lb.
  • UPC: 085339260073
  • UNSPSC: 39121308
  • Patents: U.S. Patent No. 6,908,003 B2
  • Country of Origin: United States of America
  • Color: Beige/tan
  • Material: Fiberglass reinforced polyester BMC
  • Mounting: Angled mid nails

Additional Materials

  • Carbon steel fasteners
  • Polyurethane flange

Application

New work residential construction 2 HR fire resistive walls & ceilings - air-sealed electrical boxes for envelope walls and ceilings in Energy Star homes

Standards

ANSI / UL 514C: File No. E30594

NEMA OS 4 - Energy Efficient Air-Sealed Boxes for Electrical Applications

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 3 inches

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

  • Distance between boxes in adjacent cavities may be reduced to 5 ½ inches
  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

Overview

UPC 08533926007
Long Description 22.5 Cu. In. single gang electrical box for use with nonmeatllic sheathed cable - Polyurethane flange for single drywall offset, machine tapped device holes, leveling ribs, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures - New work residential construction 2 HR fire resistive walls & ceilings - air tight - Fiberglass reinforced polyester - thermoset box with polyurethane flange - Size: D=3 9/16", W=2 1/4", H=3 3/4" - Mounted with Angled mid nails
GTiN 00085339260073
Width 2-1/4 in
Size D=3 9/16", W=2 1/4", H=3 3/4"
Color Beige,Tan
Type Single Gang Electrical Box For Use With Nonmetallic Sheathed Cable
Insulation Type Non-Conductive,Non-Metallic
Material Fiberglass Reinforced Polyester,Polyurethane,Thermoset
Applications New work residential construction 2 HR fire resistive walls & ceilings - air tight
Mounting Type Angled Mid Nails
Depth 3 in
Height 3 in
Family Brand Name Allied Moulded
Construction Injection Molded
Number of Gangs 1 Gang
Cable Entry Four "no Tools" Knockouts
Sub Brand FIBERGLASSBOX
