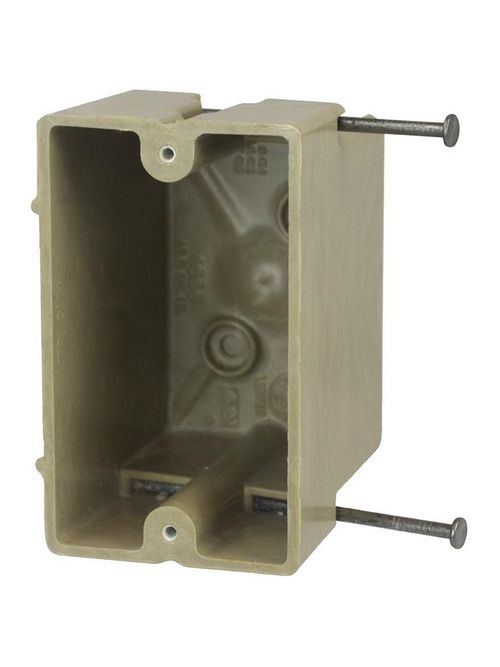

Allied Moulded Products 1096-N 3 x 2-1/4 x 3-3/4 Inch 18 In 1-Gang Internal Mid-Nail Switch/Receptacle Outlet Box

Features

Machine tapped device holes, offset gauge marks, leveling ribs, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures

Specifications

• Brand: fiberglassBOX
• Catalog #: 1096-N
• Height: 3-13/16 in.
• Width: 2-1/4 in.
• Depth: 3 in.
• Volume: 18 cu. in.
• Type of Installation: New Work
• Wall Box
• Number of Gangs: 1
• Carton Quantity: 100
• Carton Weight: 32 lb.
• UPC: 085339244141
• UNSPSC: 39121308
• Country of Origin: United States of America
• Color: Beige/tan
• Material: Fiberglass reinforced polyester BMC
• Mounting: Angled mid nails
• Additional Materials: Carbon steel fasteners

Application

New work residential construction 2 HR fire resistive walls & ceilings

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

• ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
• Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

• Shall be separated by a horizontal distance of not less than 3 inches

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

• Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
• Distance between boxes in adjacent cavities may be reduced to 5 ½ inches
