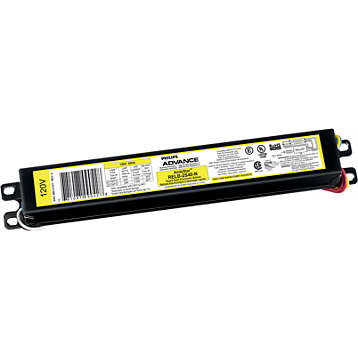

Advance RELB2S40N35I 120 VAC 60 Hz 40 W 2-Lamp T12 Electronic Ballast
Product image thumbnail 0
Product image thumbnail 1
48 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Advance Transformer
Mfg Catalog # RELB2S40N35I
Viking Electric Part # 50797

idw

Product Data

  • Bar code on case: 30781087090429
  • Pieces per Sku: 1
  • Full product name: ELE BALLAST (2) F40T12 120V
  • Product number: RELB2S40N35I
  • Skus/Case: 10
  • Short product name: ELE BALLAST (2) F40T12 120V
  • Logistics code(s): 913701218101
  • Bar code on pack: 781087090428
  • eop_net_weight_pp: 0.341 kg

General Characteristics

  • Suitable for Outdoor use?: Yes
  • Number of Lamps: 1/2 piece
  • Base Model: RELB2S40N
  • Family Name: AmbiStar
  • Lamp Type: F40T12
  • Line Frequency: 60 Hz
  • Input Current (Operating): 0.62 A
  • Ballast Type: Electronic Fluorescent
  • Starting Method: Rapid Start
  • Input Voltage: 120 V
  • Housing Dimensions: 9.5" x 1.3" x 1.0"
  • Housing: N
  • Housing Material: Metal

Approval & Application Chars

  • Circle E logo: Yes
  • DOE: Yes
  • CSA E: Yes
  • cUL certificate: No
  • CEE Rated: No
  • RoHS Compliant: Yes
  • EMC Immunity: FCC Consumer
  • Energy Star: Yes
  • UL Listed: Yes
  • CSA certificate: Yes
  • CEC Listing: Yes
  • NOM certificate: No
  • NEMA Premium: No
  • UL Recognized: No
  • SASO Certificate: No
  • Approbation Marks: UL, CSA, DOE, CSA-E, RoHS
  • FIDE Certificate: No

Operating Characteristics

  • Power Factor: 0.98
  • Ignition time: 1 s
  • Input Power Gear: 72 W
  • Lamp Current Crest Factor: 1.7 -
  • Ballast Efficacy Factor: 1.18 -
  • Ballast factor: 0.85 -
  • Sound Rating: A
  • Max THD: 20 %
  • Automatic restart: Yes

Product Dimensions

  • Height C1: 1.00 in
  • Length A2: 8.90 in
  • Width B1: 1.30 in
  • Length A1: 9.50 in

Wiring Characteristics

  • Allowed Wiring Config(Through): Yes
  • Max Dist.Ball to Lamp(Through): Red = 10'
  • Allowed Wiring Config(Remote): Yes
  • Color output terminals: No terminals
  • Max Dist. Ball to Lamp(Remote): 20'
  • Wire Type: Solid
  • Lamp Connection: Series
  • Max Dist. Ball to Lamp(Tandem): Red = 10'
  • Wire Length by Color: See data sheet
  • Wire Striplength: 0.50/0.375 mm
  • Allowed Wiring Config(Tandem): Yes
  • Color input terminals: No terminals
  • Wire Gauge: 18AWG
  • Connector type: No connector

System Chars On Driver Level

  • Rated Lamp Watts: 40W

Temperature Characteristics

  • T-case maximum: 70 C

Documents

Leaflets

Other Downloads

Overview

UPC 78108709042
Long Description Ballast, Lamp Type: T12, Ballast Type: Electronic Fluorescent, Voltage: 120, Wattage: 40, I
GTiN 00781087090428
Length 8.90 in
Width 1.30 in
Height 1.00 in
Wire Size 18 AWG
Wire Type Solid
Frequency 60 Hz
Family Brand Name Advance
Lamp Type F40T12
Number of Lamps 2
Ballast Type Electronic Fluorescent
Housing Material Metal
Start Type RAPID START
Power Factor 0.98
Lamp Wattage 40 W
Sub Brand AMBISTAR
Voltage 120 Volt
Input Voltage 120 V
Input Wattage 72 W
Input Current 0.62 A
