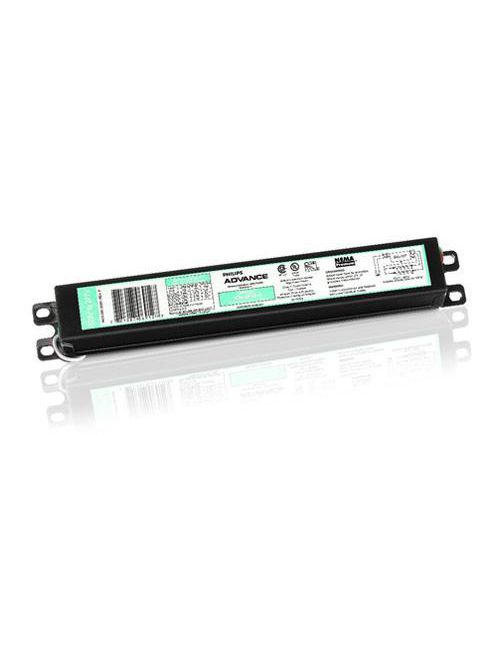

Advance ICN3P32N35I 120 to 277 VAC 50/60 Hz 32 W 3-Lamp T8 Electronic Ballast

idw

Product Data

• Bar code on case: 30781087091495
• Bar code on pack: 781087091494
• Short product name: ELE BALLAST (3) F32T8 120-277V
• Skus/Case: 10
• Product number: ICN3P32N35I
• eop_net_weight_pp: 0.377 kg
• Full product name: ELE BALLAST (3) F32T8 120-277V
• Logistics code(s): 913701220201
• Pieces per Sku: 1

General Characteristics

• Housing: N
• Housing Material: Metal
• Ballast Type: Electronic Fluorescent
• Lamp Type: F32T8
• Suitable for Outdoor use?: Yes
• Line Frequency: 50/60 Hz
• Input Voltage: 120-277 V
• Housing Dimensions: 9.5" x 1.3" x 1.0"
• Starting Method: Instant Start
• Number of Lamps: 2/3 piece
• Family Name: Centium
• Base Model: ICN3P32N

Approval & Application Chars

• cUL certificate: No
• Circle E logo: No
• EMC Immunity: FCC Non-Consumer
• RoHS Compliant: Yes
• UL Recognized: No
• CSA certificate: Yes
• CSA E: No
• CEC Listing: Yes
• DOE: No
• Energy Star: No
• SASO Certificate: No
• Approbation Marks: UL, CSA, NEMA Premium, RoHS
• CEE Rated: Yes
• NOM certificate: Yes
• FIDE Certificate: No
• NEMA Premium: Yes
• UL Listed: Yes

Operating Characteristics

• Ballast Efficacy Factor: 1.04 -
• Input Power Gear: 85-86 W
• Power Factor: 0.98
• Automatic restart: Yes
• Ballast factor: 0.88 -
• Lamp Current Crest Factor: 1.7 -
• Sound Rating: A
• Ignition time: 0.1 s
• Max THD: 10 %

Product Dimensions

• Height C1: 1.00 in
• Width B1: 1.30 in
• Length A1: 9.50 in
• Length A2: 8.90 in

Wiring Characteristics

• Allowed Wiring Config(Through): Yes
• Max Dist.Ball to Lamp(Through): ES = 6' / Standard = 20'
• Allowed Wiring Config(Tandem): Yes
• Color output terminals: No terminals
• Max Dist. Ball to Lamp(Tandem): ES = 6' / Standard = 20'
• Wire Gauge: 18AWG
• Wire Striplength: 0.50/0.375 mm
• Wire Length by Color: See data sheet
• Color input terminals: No terminals
• Wire Type: Solid
• Connector type: No connector
• Max Dist. Ball to Lamp(Remote): ES = 6' / Standard = 20'
• Lamp Connection: Parallel
• Allowed Wiring Config(Remote): Yes

System Chars On Driver Level

• Rated Lamp Watts: 32W

Temperature Characteristics

• T-case maximum: 70 C
