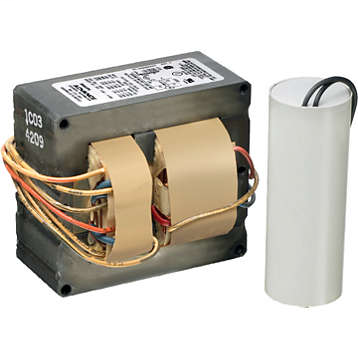

Philips Advance 71A6572001 120/208/240/277 VAC 60 Hz 1000 W Magnetic Metal Halide Ballast Kit
Product image thumbnail 0
Product image thumbnail 1
Usually available within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Advance Transformer
Mfg Catalog # 71A6572001
Viking Electric Part # 3427

idw

Product Data

  • Short product name: MH BAL 1000W M47 QUAD KIT
  • Pieces per Sku: 1
  • Full product name: MH BAL 1000W M47 QUAD KIT
  • Logistics code(s): 913700525609
  • Skus/Case: 1
  • eop_net_weight_pp: 9.676 kg
  • Bar code on case: 30781087657219
  • Product number: 71A6572001
  • Bar code on pack: 781087657218

General Characteristics

  • Ignitor Temp Rating: NA
  • Number of Lamps: 1 piece
  • Capacitor Catalog Number: MD2409000
  • Core Size: 4 1/4 x 6 (2 Coil)
  • Capacitor Dia/Oval Dim: 1.75 in
  • Capacitor Height: 3.9 in
  • Line Voltage: 120/208/240/277 V
  • Capacitor Temp Rating: 90°C
  • Family Name: Core & Coil MH High Power
  • Ignitor Catalog Number: NA
  • Input Current (Operating): 9/5.2/4.5/3.9 A
  • Base Model: 71A6572
  • Line Frequency: 60 Hz
  • Ballast Type: Magnetic HID
  • Capacitor Requirements: 480V
  • Suitable for Outdoor use?: Yes
  • Circuit Type: CWA
  • Lamp Type: 1000W MH
  • Capacitor value [μF]: 24 MFD

Approval & Application Chars

  • FIDE Certificate: No
  • CE marking: No
  • Chia Quality Certificate: No
  • UL Listed: No
  • ANSI Code: M47
  • CEC Listing: No
  • RoHS Compliant: Yes
  • HiPot Test (1 minute): 2000 V
  • UL Temperature Code: 1029D
  • Approbation Marks: ULR, CSA, RoHS
  • ETL Certificate: No
  • cUL certificate: No
  • UL Recognized: Yes
  • UL Insulation Class: H(180°C)
  • Open Circ Voltage Test (Volts): 385-475 V
  • NOM certificate: No
  • HiPot Test (2 seconds): 2500 V
  • VDE certificate: No
  • Temperature marking: D/B/B/B
  • CCC certificate: No
  • EISA: No
  • SASO Certificate: No
  • CSA certificate: Yes

Operating Characteristics

  • Power Factor: 0.90
  • Constant wattage deviation: 10%
  • Automatic restart: No
  • Nominal Open Circuit Voltage: 430 V
  • Ballast factor: 1 -
  • Secondary ShortCircuit Current: 5.2-6.4 A
  • Input Current (Starting): 7.8/4/3.7/3.2 A
  • Input Power Gear: 1080 W
  • Input Voltage at Lamp Dropout: 84/146/168/194 V
  • Inp. Current (Open Circuit): 4.5/2.7/2.3/2.2 A
  • Input Current Short Circuit: 5.6-8.6/3.2-4.8/2.8-4.3/2.4-3.6 V

Product Dimensions

  • Length A1: 6 in
  • Length A2: 5.4 in
  • Stack Height C2: 3.05 in
  • Coil Depth C1: 5 in
  • Width B2: 3.9 in
  • Length A3: 4.4 in
  • Width B1: 4.3 in

Wiring Characteristics

  • Allowed Wiring Config(Remote): Yes
  • Wire Type: Stranded
  • Recommended Fuse: 20/15/10/10 A
  • Wire Striplength: 0.5 mm
  • Max Dist. Ball to Lamp(Remote): Determined by AWG used
  • Wire Length by Color: 12"

System Chars On Driver Level

  • Rated Lamp Watts: 1000W

Documents

Other Downloads

Leaflets

Overview

UPC 78108765721
Long Description The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire. The core and coil also forms the nucleus of Philips Advance's five other ballast configurations.
GTiN 00781087657218
Length 5.4 in
Width 3.9 in
Type Magnetic HID
Applications Lighting Luminaire Component
Height 4.25 in
Weight 21.36 LB
Wire Type Stranded
Frequency 60 Hz
Wattage 1000 Watt
Family Brand Name Philips Lighting
Lamp Type MH
Number of Lamps 1
Ballast Type Magnetic HID
Power Rating 1000 WTT
Blade Dimensions 152.4 mm L x 107.95 mm W x 114.3 mm H
Start Type PROBE
Power Factor 0.90
Ballast Factor 1
Thermal Protection CLASS P
Lamp Wattage 1000 W
Voltage 120/208/240/277 Volt
Input Wattage 1080 W
Input Current 3.9 A
