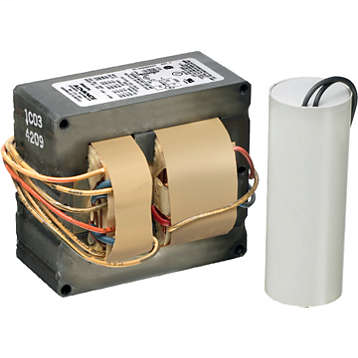

Advance 71A5492001D 120/208/240/277 VAC 60 Hz 150 W Magnetic Metal Halide Ballast Kit
8 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Advance Transformer
Mfg Catalog # 71A5492001D
Viking Electric Part # 15386

idw

Product Data

  • Logistics code(s): 913710606201
  • eop_net_weight_pp: 3.502 kg
  • Pieces per Sku: 1
  • Bar code on case: 30781087053240
  • Bar code on pack: 781087053249
  • Skus/Case: 1
  • Full product name: MH BAL 150W M102/142 QUAD KIT
  • Short product name: MH BAL 150W M102/142 QUAD KIT
  • Product number: 71A5492001D

General Characteristics

  • Lamp Type: 150 MH
  • Ignitor Catalog Number: LI533-H4
  • Capacitor Catalog Number: 7C160M30RA
  • Capacitor Requirements: 280V
  • Circuit Type: HX-HPF
  • Capacitor Temp Rating: 105°C
  • Base Model: 71A5492
  • Ballast Type: Magnetic HID
  • Family Name: Core & Coil MH
  • Capacitor value [μF]: 16 MFD
  • Core Size: 3 X 4 (2 LW)
  • Line Frequency: 60 Hz
  • Line Voltage: 120/208/240/277 V
  • Capacitor Dia/Oval Dim: 1.65 in
  • Capacitor Height: 2.75 in
  • Input Current (Operating): 1.6/0.96/0.8/0.7 A
  • Suitable for Outdoor use?: Yes
  • Number of Lamps: 1 piece
  • Ignitor Temp Rating: 105°C

Approval & Application Chars

  • Chia Quality Certificate: No
  • NOM certificate: No
  • SASO Certificate: No
  • CEC Listing: No
  • EISA: No
  • Temperature marking: C/B/B/A
  • Open Circ Voltage Test (Volts): 235-290 V
  • UL Insulation Class: H(180°C)
  • UL Recognized: Yes
  • CE marking: No
  • UL Temperature Code: 1029C
  • ETL Certificate: No
  • ANSI Code: M102/M142
  • CCC certificate: No
  • Approbation Marks: ULR, CSA, RoHS
  • VDE certificate: No
  • HiPot Test (1 minute): 2000 V
  • CSA certificate: Yes
  • RoHS Compliant: Yes
  • cUL certificate: No
  • UL Listed: No
  • HiPot Test (2 seconds): 2500 V
  • FIDE Certificate: No

Operating Characteristics

  • Secondary ShortCircuit Current: 2.05-2.55 A
  • Input Voltage at Lamp Dropout: 90/156/180/208 V
  • Automatic restart: No
  • Input Current Short Circuit: 1.03-1.41/0.61-0.92/0.49-0.74/0.44-0.67 A
  • Inp. Current (Open Circuit): 3.5/2.04/1.73/1.52 A
  • Input Current (Starting): 1.75/1.3/0.85/0.77 A
  • Ballast factor: 1 -
  • Power Factor: 0.90
  • Input Power Gear: 185 W
  • Constant wattage deviation: 12%
  • Nominal Open Circuit Voltage: 250 V

Product Dimensions

  • Coil Depth C1: 3.90 in
  • Width B2: 2.4 in
  • Width B1: 2.8 in
  • Length A1: 3.9 in
  • Length A2: 3.5 in
  • Stack Height C2: 2.25 in

Wiring Characteristics

  • Max Dist. Ball to Lamp(Remote): 10'
  • Wire Type: Stranded
  • Recommended Fuse: 10/5/5/4 A
  • Wire Striplength: 0.5 mm
  • Allowed Wiring Config(Remote): Yes
  • Wire Length by Color: 12"

System Chars On Driver Level

  • Rated Lamp Watts: 150W

Documents

Leaflets

Other Downloads

Overview

UPC 78108705324
Long Description The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire. The core and coil also forms the nucleus of Philips Advance's five other ballast configurations.
GTiN 00781087053249
Length 3.9 in
Width 2.4 in
Type Magnetic HID
Applications Lighting Luminaire Component
Height 2.9 in
Weight 7.75 LB
Wire Type Stranded
Frequency 60 Hz
Wattage 150 Watt
Family Brand Name Advance
Lamp Type 150 MH
Number of Lamps 1
Ballast Type Magnetic HID
Power Rating 150 WTT
Start Type PULSE
Power Factor 0.90
Ballast Factor 1
Thermal Protection CLASS P
Lamp Wattage 150 W
Voltage 120/208/240/277 Volt
Input Wattage 185 W
Input Current 0.7 A
