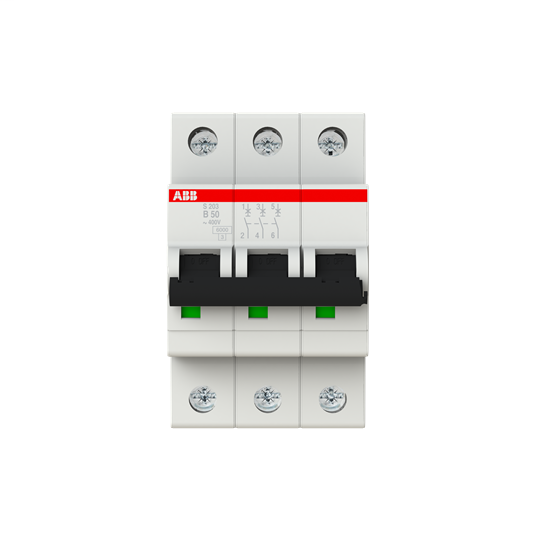

Thomas & Betts S203-B50 3-Pole 50 Amp 480 Star/277 VAC Supplementary Protector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually available within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABB Low Voltage
Mfg Catalog # S203-B50
Viking Electric Part # 51846

Specifications

Technical

  • Standards: IEC/EN 60898-1IEC/EN 60947-2UL 1077
  • Number of Poles: 3
  • Number of Protected Poles: 3
  • Tripping Characteristic: B
  • Rated Current (In): 50 A
  • Rated Operational Voltage: acc. to IEC 60898-1 400 V ACacc. to IEC 60947-2 440 V AC
  • Power Loss: 9.75 Wat Rated Operating Conditions per Pole 3.25 W
  • Rated Insulation Voltage (Ui): acc. to IEC/EN 60664-1 440 V
  • Operational Voltage: Maximum (Incl. Tolerance) 440 V ACMaximum 440 V ACMinimum 12 V ACMinimum 12 V DC
  • Rated Frequency (f): 50 Hz60 Hz
  • Rated Short-Circuit Capacity (Icn): (400 V AC) 6 kA
  • Rated Ultimate Short-Circuit Breaking Capacity (Icu): (230 V AC) 20 kA(440 V AC) 10 kA
  • Rated Service Short-Circuit Breaking Capacity (Ics): (230 V AC) 15 kA
  • Energy Limiting Class: 3
  • Overvoltage Category: III
  • Pollution Degree: 3
  • Rated Impulse Withstand Voltage (Uimp): 4 kV(6.2 kV @ sea level)(5.0 kV @ 2000 m)
  • Dielectric Test Voltage: 50 / 60 Hz, 1 min: 2 kV
  • Housing Material: Insulation Group II, RAL 7035
  • Actuator Type: Insulation group II, black, sealable
  • Actuator Material: Insulation Group II, Black, Sealable
  • Actuator Marking: I / O
  • Contact Position Indication: Red ON / Green OFF
  • Degree of Protection: IP20
  • Remarks: IP40 in enclosure with cover
  • Electrical Endurance: 10000 AC cycle
  • Mechanical Endurance (Nendu): 20000 cycle
  • Terminal Type: Screw Terminals
  • Screw Terminal Type: Failsafe Bi-directional Cylinder-lift Terminal
  • Connecting Capacity: Busbar 10 / 10 mm²Flexible with Ferrule 0.75 ... 25 mm²Flexible 0.75 ... 25 mm²Rigid 0.75 ... 35 mm²Stranded 0.75 ... 35 mm²
  • Tightening Torque: 2.8 N·m
  • Recommended Screw Driver: Pozidriv 2
  • Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
  • Mounting Position: Any
  • Built-In Depth (t2): 69 mm
  • Installation Size: acc. to DIN 43880 1
  • Power Supply Connection: Arbitrary

Environmental

  • Ambient Air Temperature: Operation -25 ... +55 °CStorage -40 ... +70 °C
  • Reference Ambient Air Temperature: 30 °C
  • Resistance to Shock acc. to IEC 60068-2-27: 25g / 2 shocks / 13 ms
  • Resistance to Vibrations acc. to IEC 60068-2-6: 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
  • Environmental Conditions: 28 cycleswith 55 °C / 90-96 %and 25 °C / 95-100 %
  • RoHS Status: Following EU Directive 2011/65/EU

Technical UL/CSA

  • Maximum Operating Voltage UL/CSA: 110 V DC480Y/277 V AC
  • Connecting Capacity UL/CSA: Busbar 18-8 AWGConductor 18-4 AWG
  • Tightening Torque UL/CSA: 25 in·lb
  • Interrupting Rating acc. to UL1077: (110 V DC) 10 kA(277 V AC) 6 kA(480Y / 277 V AC) 6 kA

Dimensions

  • Product Net Width: 52.5 mm
  • Product Net Depth / Length: 69 mm
  • Product Net Height: 88 mm
  • Product Net Weight: 0.375 kg

Container Information

  • Package Level 1 Units: carton 1 piece
  • Package Level 1 Width: 92 mm
  • Package Level 1 Depth / Length: 58 mm
  • Package Level 1 Height: 80 mm
  • Package Level 1 Gross Weight: 0.4 kg
  • Package Level 1 EAN: 4016779609562
  • Package Level 2 Units: 36 piece
  • Package Level 2 Width: 275 mm
  • Package Level 2 Depth / Length: 395 mm
  • Package Level 2 Height: 210 mm
  • Package Level 2 Gross Weight: 13.36 kg
  • Package Level 2 EAN: 4016779973571

Ordering

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362010
  • E-Number (Sweden): 2100456

Classifications

  • Object Classification Code: F
  • ETIM 6: EC000042 - Miniature circuit breaker (MCB)
  • ETIM 7: EC000042 - Miniature circuit breaker (MCB)
  • eClass: 7.0 27141901
  • UNSPSC: 39121614

Overview

Long Description System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 (for this code purchased in South America there is no UL certificate), allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
GTiN 00662019169934
Length 69 mm
Width 52.5 mm
Operating Temperature -25 to +55 C
Type High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
Applications Designed for Use in Cable Protection Applications. Example: Control Circuits, Lighting
Height 3.4646 in
Family Brand Name Thomas & Betts
Trip Type B
Number of Poles 3 Pole
Interrupt Rating 6 kA
Voltage null
Terminal Type Screw Terminals
Standard EN 60898-1IEC,IEC,EN 60947-2UL 1077
Current 50 A
