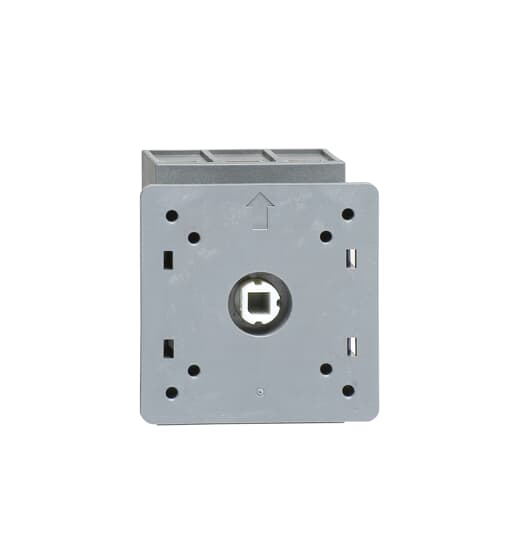

Thomas & Betts OT63FT3 600 VAC 60 Amp 3-Pole Open Non-Fusible Disconnect Switch
1 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABB Low Voltage
Mfg Catalog # OT63FT3
Viking Electric Part # 46076

Specifications

Dimensions

  • Product Net Width: 65 mm
  • Product Net Height: 72 mm
  • Product Net Depth / Length: 69 mm
  • Product Net Weight: 0.26 kg

Technical

  • Rated Operational Current AC-21A (Ie): (380 ... 415 V) 63 A(500 V) 63 A(690 V) 63 A
  • Rated Operational Current AC-22A (Ie): (380 ... 415 V) 63 A(500 V) 63 A(690 V) 63 A
  • Rated Operational Current AC-23A (Ie): (380 ... 415 V) 63 A(500 V) 45 A(690 V) 20 A
  • Rated Operational Power AC-23A (Pe): (220 ... 240 V) 11 kW(400 ... 415 V) 22 kW(500 V) 22 kW(690 V) 15 kW
  • Conventional Free-air Thermal Current (Ith): q = 40 °C 63 A
  • Conventional Thermal Current (Ithe): Fully Enclosed 63 A
  • Rated Impulse Withstand Voltage (Uimp): 8 kV
  • Rated Insulation Voltage (Ui): acc. to IEC/EN 60664-1 750 V
  • Rated Operational Voltage: Main Circuit 750 V
  • Rated Short-Circuit Making Capacity (Icm): (690 V) 1.4 kA
  • Rated Short-time Withstand Current (Icw): for 1 s 1 kA
  • Power Loss: at Rated Operating Conditions per Pole 2.8 W
  • Pollution Degree: 3
  • Handle Type: Handle and shaft not included
  • Switches Operating Mechanism: Mechanism on Top of the Switch
  • Distance Between Phases: Standard
  • Position of Line Terminals: Top In - Bottom OutBottom In - Top Out
  • Operating Mode: Front operated
  • Standards: IEC 60947-3 / UL 508 / CSA C22.2 No. 14
  • Special Functions: No
  • Mounting Type: Door mounting
  • Number of Poles: 3
  • Cable Cross-Section: Cu 1.5...35 mm²
  • Degree of Protection: Front IP20
  • Terminal Type: Screw Terminals
  • Tightening Torque: acc. IEC 60947-1 2 N·m
  • Mechanical Durability: 20000

Technical UL/CSA

  • Maximum Operating Voltage UL/CSA: 600 V
  • Horsepower Rating UL/CSA: (110 ... 120 V AC) Single Phase 2 Hp(240 V AC) Single Phase 7.5 Hp(440 ... 480 V AC) Single Phase 15 Hp(550 ... 600 V AC) Single Phase 15 Hp(220 ... 240 V AC) Three Phase 15 Hp(440 ... 480 V AC) Three Phase 30 Hp(550 ... 600 V AC) Three Phase 30 Hp
  • Ampere Rating UL/CSA: 60 A
  • Tightening Torque UL/CSA: 18 in·lb

Environmental

  • RoHS Status: Following EU Directive 2011/65/EU
  • Environmental Information: 1SCC301183D0201

Container Information

  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 80 mm
  • Package Level 1 Depth / Length: 84 mm
  • Package Level 1 Height: 76 mm
  • Package Level 1 Gross Weight: 0.28 kg
  • Package Level 1 EAN: 6417019393186

Classifications

  • Object Classification Code: Q
  • ETIM 5: EC000216 - Switch disconnector
  • ETIM 6: EC000216 - Switch disconnector
  • ETIM 7: EC000216 - Switch disconnector
  • UNSPSC: 39122233
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
  • E-Number (Sweden): 3170947

Overview

Long Description 3-pole, front operated, door mounted switch-diconnector / non-fusible diconnect switch with protected clamp terminals, handle is not included
GTiN 00804325415613
Type Circuit breaker enclosure
Applications Industrial control panel disconnects
Family Brand Name Thomas & Betts
Number of Poles 3 Pole
Terminal Type Screw Terminals
Mounting Type Door
Standard IEC 60947-3,CSA C22.2 No. 14,UL 508
