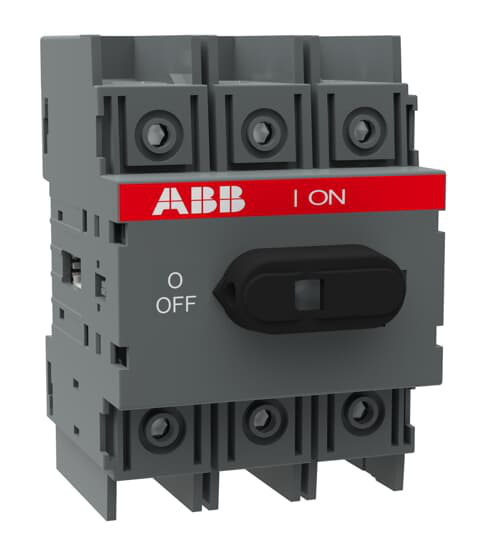

Thomas & Betts OT30F3 600 VAC 30 Amp 3-Pole Open Non-Fusible Disconnect Switch
2 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABB Low Voltage
Mfg Catalog # OT30F3
Viking Electric Part # 46048

Specifications

Dimensions

  • Product Net Width: 70 mm
  • Product Net Height: 100 mm
  • Product Net Depth / Length: 74 mm
  • Product Net Weight: 0.36 kg

Technical

  • Rated Operational Current AC-21A (Ie): (380 ... 415 V) 40 A(500 V) 40 A(690 V) 40 A
  • Rated Operational Current AC-22A (Ie): (380 ... 415 V) 40 A(500 V) 40 A(690 V) 40 A
  • Rated Operational Current AC-23A (Ie): (380 ... 415 V) 40 A(500 V) 40 A(690 V) 40 A
  • Rated Operational Power AC-23A (Pe): (380 ... 415 V) 18.5 kW(500 V) 22 kW(690 V) 37 kW
  • Rated Impulse Withstand Voltage (Uimp): 8 kV
  • Rated Insulation Voltage (Ui): acc. to IEC/EN 60664-1 750 V
  • Rated Operational Voltage: Main Circuit 750 V
  • Rated Short-Circuit Making Capacity (Icm): (690 V) 3.6 kA
  • Rated Short-time Withstand Current (Icw): for 1 s 2.5 kA
  • Power Loss: at Rated Operating Conditions per Pole 0.7 W
  • Pollution Degree: 3
  • Handle Type: KnobHandle and shaft not included
  • Switches Operating Mechanism: Mechanism on Top of the Switch
  • Distance Between Phases: Standard
  • Position of Line Terminals: Top In - Bottom OutBottom In - Top Out
  • Operating Mode: Front operated
  • Standards: IEC 60947-3 / UL 98 / CSA C22.2 NO.4
  • Special Functions: No
  • Mounting Type: Base mounting
  • Number of Poles: 3
  • Cable Cross-Section: Cu 2.5...25 mm²
  • Degree of Protection: Front IP20
  • Terminal Type: Screw Terminals
  • Tightening Torque: acc. IEC 60947-1 6.2 N·m
  • Mechanical Durability: 20000

Technical UL/CSA

  • Maximum Operating Voltage UL/CSA: 600 V
  • Horsepower Rating UL/CSA: (110 ... 120 V AC) Single Phase 2 Hp(240 V AC) Single Phase 5 Hp(220 ... 240 V AC) Three Phase 10 Hp(440 ... 480 V AC) Three Phase 20 Hp(550 ... 600 V AC) Three Phase 30 Hp
  • Ampere Rating UL/CSA: 30 A
  • Tightening Torque UL/CSA: 55 in·lb

Environmental

  • RoHS Status: Following EU Directive 2011/65/EU
  • Environmental Information: 1SCC301183D0201

Container Information

  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 81 mm
  • Package Level 1 Depth / Length: 112 mm
  • Package Level 1 Height: 86 mm
  • Package Level 1 Gross Weight: 0.39 kg
  • Package Level 1 EAN: 6417019391984

Classifications

  • Object Classification Code: Q
  • ETIM 5: EC000216 - Switch disconnector
  • ETIM 6: EC000216 - Switch disconnector
  • ETIM 7: EC000216 - Switch disconnector
  • UNSPSC: 39122233
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)

Overview

Long Description 3-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with front protected clamp terminals, handle and shaft are not included
GTiN 00804325415484
Type Circuit breaker enclosure
Applications Suitable for use as motor disconnects or industrial control panel disconnects on service entrance equipment, panelboards, switchboards, industrial control equipment, motor control centers, etc.
Family Brand Name Thomas & Betts
Number of Poles 3 Pole
Terminal Type Screw Terminals
Mounting Type Base Mounting
Standard IEC 60947-3,UL 98,CSA C22.2 NO.4
