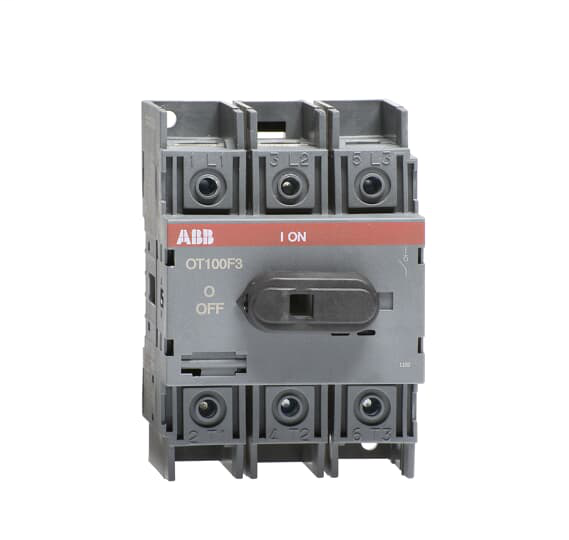

Thomas & Betts OT100F3 600 VAC 100 Amp 3-Pole Open Non-Fusible Disconnect Switch
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABB Low Voltage
Mfg Catalog # OT100F3
Viking Electric Part # 46029

Specifications

Dimensions

  • Product Net Width: 100 mm
  • Product Net Height: 70 mm
  • Product Net Depth / Length: 74 mm
  • Product Net Weight: 0.36 kg

Technical

  • Rated Operational Current AC-21A (Ie): (380 ... 415 V) 100 A(500 V) 100 A(690 V) 100 A
  • Rated Operational Current AC-22A (Ie): (380 ... 415 V) 100 A(500 V) 100 A(690 V) 100 A
  • Rated Operational Current AC-23A (Ie): (380 ... 415 V) 80 A(500 V) 60 A(690 V) 40 A
  • Rated Operational Power AC-23A (Pe): (220 ... 240 V) 22 kW(400 ... 415 V) 37 kW(500 V) 37 kW(690 V) 37 kW
  • Conventional Free-air Thermal Current (Ith): q = 40 °C 115 A
  • Conventional Thermal Current (Ithe): Fully Enclosed 115 A
  • Rated Impulse Withstand Voltage (Uimp): 8 kV
  • Rated Insulation Voltage (Ui): acc. to IEC/EN 60664-1 750 V
  • Rated Operational Voltage: Main Circuit 750 V
  • Rated Short-Circuit Making Capacity (Icm): (690 V) 3.6 kA
  • Rated Short-time Withstand Current (Icw): for 1 s 2.5 kA
  • Power Loss: at Rated Operating Conditions per Pole 4.0 W
  • Pollution Degree: 3
  • Handle Color: Black
  • Handle Type: KnobHandle and shaft not included
  • Switches Operating Mechanism: Mechanism on Top of the Switch
  • Distance Between Phases: Standard
  • Position of Line Terminals: Top In - Bottom OutBottom In - Top Out
  • Operating Mode: Front operated
  • Standards: IEC 60947-3 / UL 98 / CSA C22.2 NO.4
  • Special Functions: No
  • Mounting Type: Base mounting
  • Number of Poles: 3
  • Cable Cross-Section: Cu 10...70 mm²
  • Degree of Protection: Front IP20
  • Terminal Type: Screw Terminals
  • Tightening Torque: acc. IEC 60947-1 6 N·m
  • Mechanical Durability: 20000

Technical UL/CSA

  • Maximum Operating Voltage UL/CSA: 600 V
  • Horsepower Rating UL/CSA: (110 ... 120 V AC) Single Phase 5 Hp(240 V AC) Single Phase 15 Hp(440 ... 480 V AC) Single Phase 25 Hp(550 ... 600 V AC) Single Phase 20 Hp(220 ... 240 V AC) Three Phase 30 Hp(440 ... 480 V AC) Three Phase 50 Hp(550 ... 600 V AC) Three Phase 50 Hp
  • Ampere Rating UL/CSA: 100 A
  • Tightening Torque UL/CSA: 55 in·lb

Environmental

  • RoHS Status: Following EU Directive 2011/65/EU
  • Environmental Information: 1SCC301183D0201

Container Information

  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 81 mm
  • Package Level 1 Depth / Length: 112 mm
  • Package Level 1 Height: 86 mm
  • Package Level 1 Gross Weight: 0.39 kg
  • Package Level 1 EAN: 6417019391359

Classifications

  • Object Classification Code: Q
  • ETIM 5: EC000216 - Switch disconnector
  • ETIM 6: EC000216 - Switch disconnector
  • ETIM 7: EC000216 - Switch disconnector
  • UNSPSC: 39122233
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
  • E-Number (Sweden): 3170942

Overview

Long Description 3-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with front protected clamp terminals, handle and shaft are not included
GTiN 00804325415873
Type Circuit breaker enclosure
Applications Suitable for use as motor disconnects or industrial control panel disconnects on service entrance equipment, panelboards, switchboards, industrial control equipment, motor control centers, etc.
Family Brand Name Thomas & Betts
Number of Poles 3 Pole
Terminal Type Screw Terminals
Mounting Type Base Mounting
Standard CSA C22.2 NO.4,IEC 60947-3,UL 98
