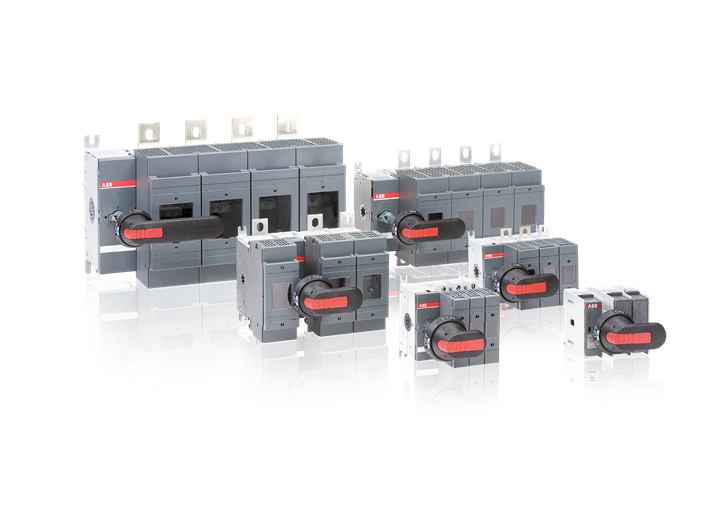

Thomas & Betts OS30FAJ12 600 VAC 30 Amp 3-Pole Open Fusible Disconnect Switch
1 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABB Low Voltage
Mfg Catalog # OS30FAJ12
Viking Electric Part # 45979

Specifications

Dimensions

  • Product Net Width: 143 mm
  • Product Net Height: 100 mm
  • Product Net Depth / Length: 119 mm
  • Product Net Weight: 0.7 kg

Technical

  • Rated Operational Current AC-21A (Ie): (500 V) 30 A(690 V) 30 A
  • Rated Operational Current AC-22A (Ie): (500 V) 30 A(690 V) 30 A
  • Rated Operational Current AC-23A (Ie): (500 V) 30 A(690 V) 30 A
  • Rated Operational Power AC-23A (Pe): (220 ... 240 V) 7.5 kW(400 V) 15 kW(415 V) 15 kW(500 V) 18.5 kW(690 V) 22 kW
  • Conventional Free-air Thermal Current (Ith): q = 40 °C 32 A
  • Conventional Thermal Current (Ithe): Fully Enclosed 32 A
  • Rated Impulse Withstand Voltage (Uimp): 12 kV
  • Rated Insulation Voltage (Ui): 1000 V
  • Rated Operational Voltage: 500 V
  • Rated Short-time Withstand Current (Icw): for 1 s 1 kiloampere rms
  • Rated Conditional Short-Circuit Current (Inc): (690 V) 80 kA
  • Power Loss: at Rated Operating Conditions per Pole 3.5 W
  • Pollution Degree: 3
  • Handle Type: Handle and shaft not included
  • Switches Operating Mechanism: 12 (Between the Poles)
  • Position of Line Terminals: Top In - Bottom OutBottom In - Top Out
  • Fuse Size: 30 A
  • Fuse System: Class J
  • Operating Mode: Front Operated
  • Standards: UL98IEC 60947-3
  • Mounting Type: Base mounting
  • Number of Poles: 3
  • Cable Cross-Section: 2.5 ... 25 mm²
  • Terminal Type: Screw Terminals

Technical UL/CSA

  • Horsepower Rating UL/CSA: (acc. to UL 240 V) 7.5 Hp(acc. to UL 480 V) 15 Hp(acc. to UL 600 V) 20 Hp
  • Ampere Rating UL/CSA: 30 A
  • Tightening Torque UL/CSA: Wire-Clamp 17 in·lb

Container Information

  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 240 mm
  • Package Level 1 Depth / Length: 108 mm
  • Package Level 1 Height: 130 mm
  • Package Level 1 Gross Weight: 0.7 kg
  • Package Level 1 EAN: 6417019420912

Classifications

  • Object Classification Code: Q
  • ETIM 4: EC001040 - Fuse switch disconnector
  • ETIM 5: EC001040 - Fuse switch disconnector
  • ETIM 6: EC001040 - Fuse switch disconnector
  • ETIM 7: EC001040 - Fuse switch disconnector
  • UNSPSC: 39122233
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)

Overview

Long Description Switch Fuses,Front operated,3-pole,12 (Between the Poles),Class J,30 A,Handle and shaft not included
GTiN 00804325415842
Size 143x100x119mm
Type Disconnect switch
Applications For use with J fuse type
Family Brand Name Thomas & Betts
Number of Poles 3 Pole
Terminal Type Screw Terminals
Mounting Type Base Mounting
Standard UL98IEC 60947-3
