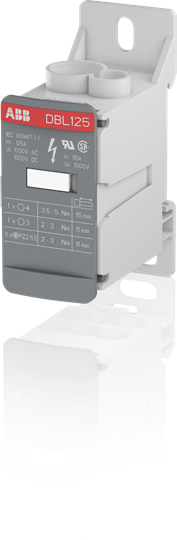

ABB 1SNL312510R0000 DBL125 Screw Clamp Power distribution Terminal Blocks
Product image thumbnail 0
Product image thumbnail 1
Usually available within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABB Inc
Mfg Catalog # 1SNL312510R0000
Viking Electric Part # 209248

Specifications

Ordering

  • Color: Grey
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85369010

Dimensions

  • Product Net Width: 28.2 mm
  • Product Net Height: 75 mm
  • Product Net Depth / Length: 50.7 mm
  • Product Net Weight: 122 g

Technical

  • Rated Cross-Section: 35 mm²
  • Spacing: 28.2 mm
  • Connection Type: Screw Clamp
  • Function: Feed-through
  • Number of Levels: 1
  • Connecting Capacity Main Circuit: Screw Clamp / Rigid 1x 10 ... 35 mm²
  • Rated Current (In): Main Circuit 125 A
  • Rated Short-time Withstand Current (Icw): for 1 s 4200 A
  • Rated Impulse Withstand Voltage (Uimp): 8000 V
  • Dielectric Test Voltage: 2200 V
  • Pollution Degree: 3
  • Power Loss: 4 W
  • Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
  • Insulation Material: Polyamide
  • Mounting on DIN Rail: TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
  • Tightening Torque: Main Circuit 3.5 ... 5 N·m

Technical UL/CSA

  • Maximum Operating Voltage UL/CSA: Main Circuit 1000 V
  • Connecting Capacity UL/CSA: Stranded 2 AWG
  • Flammability According to UL94: V-0
  • Short-Circuit Current Rating (SCCR): 100 kA

Environmental

  • Ambient Air Temperature: Operation -55 ... +110 °CStorage -55 ... +110 °C
  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment

Classifications

  • Object Classification Code: X
  • ETIM 4: EC000276 - Distribution terminal block
  • ETIM 5: EC000276 - Distribution terminal block
  • ETIM 6: EC000276 - Distribution terminal block

Container Information

  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 57 mm
  • Package Level 1 Depth / Length: 95 mm
  • Package Level 1 Height: 37 mm
  • Package Level 1 Gross Weight: 0.14 kg
  • Package Level 1 EAN: 3472599856585
  • Package Level 2 Units: 75 piece
  • Package Level 2 Width: 230 mm
  • Package Level 2 Depth / Length: 380 mm
  • Package Level 2 Height: 310 mm
  • Package Level 2 Gross Weight: 10.5 kg

Overview

UPC 662019S0001
Long Description 8 connections: distribute unipolar and multipolar power lines, or combine several inputs - Mount it on Din rail or plate and save up to 50% rail space compared to conventional copper bars - Reduce the assembly time by 80% by avoiding to use fastening and isolating components - Increase the number of outputs by using the optional input and connecting two DBL together - Easy identification with the reversible cover and delivered pre-printed markers L1, L2, L3, N, PE, +, .
GTiN 00888614490413
Color Gray
Family Brand Name AB
Current 125 A
