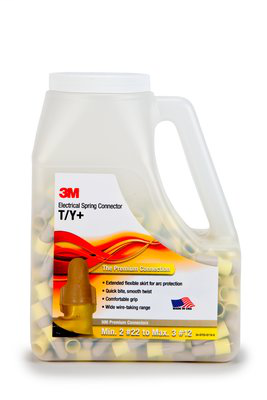

3M T/Y+JUG 500/Jug Tan/Yellow Spring Connector

Features

• Strong bite for a secure, reliable connection
• 3M™ Performance Plus™ Wire Connectors are designed with a uniquely flexible spring that has generous room for expansion and a strong bite for a secure connection. Because of their increased wire range, just three Performance Plus wire connectors handle the work of eight standard connectors. And the flexible skirt helps prevent copper exposure for enhanced safety.
• Flexible spring expands for greater wire range and reuse
• Dual color coded: one connector does the job of two traditional connectors in the majority of applications
• 3M™ Performance Plus™ Wire Connectors are UL Listed for 600 volts on copper wire. They are available in five color/wire range options: O/B+ (orange/blue) 2 #22 - 3 #12 AWG; T/Y+ (tan/yellow) 2 #22 - 3 #12 AWG; R/Y+ (red/yellow) 2 #18 - 2 #8 AWG; T/R+ (tan/red) 2 #18 - 5 #12 AWG; B/G+ (blue/gray) 4 #14 - 2 #6 AWG.
• UL Listed
• UL Listed and CSA Certified

Specifications

• 3M ID: 80611454549
• Agency Approvals: UL and CSA
• Brand: 3M™
• China RoHS - Below MCV: Yes
• Conductor Sizes: 22 - 12 AWG
• Connection Type: Wire
• Connector Style: Twist On
• Family: 3M™ Performance Plus Wire Connector
• Flame Retardant: Yes
• Material: Plastic
• Maximum Operating Temperature (Celsius): 105 Degree Celsius
• Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
• Maximum Recommended Voltage Rating: 600 V
• Maximum Wire Gauge: 12 AWG
• Minimum Wire Gauge: 22 AWG
• Packaging: Jug
• Product Color: Tan || Yellow
• Product Type: Connector
• RoHS 2011/65/EU Compliant: Yes
• RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
• Units per Case: 10000
• Voltage Rating: 600 Volt
