3M Electrical STD-0-9 Plastic Wire Marker Tape Dispenser
Product image thumbnail 0
Product image thumbnail 1
14 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # STD-0-9
Viking Electric Part # 54386

Features

  • Compact design that hangs from a tool belt
  • Refillable compartments for SDR tape with high tack, acrylic adhesive that resists solvents, oil and water and adheres firmly to insulation surfaces
  • Can be custom filled to meet specific project requirements
  • Dispenses only the desired length

Specifications

  • Adhesive Material: Acrylic
  • Application: Marking Wire and Cable
  • Color Family: Red
  • Dispenser/Marker Type: Tape Roll Dispenser with Tape
  • Dispenser Type: Dispenser with Tape
  • Family: Tape Dispensers
  • Kit Includes: Dispenser filled with numbers 0 thru 9
  • Legend: 0" through "9"
  • Legend Color: White
  • Marker ID Style: Pre-printed
  • Marker Type: Dispenser
  • Material: Plastic
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 121 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 250 Degree Fahrenheit
  • Minimum Order Quantity: 25
  • Overall Length (Metric): 2.4 m
  • Overall Width (Metric): 5.46 mm
  • Product Color: Red
  • Product Type: Tape Dispenser
  • Refill: Tape Roll
  • Refillable: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tape Color: White
  • UV Resistant: No
  • Voltage Application: Low Voltage
  • Wire Marker Products: Wire Marker Tape Dispenser and Refill Rolls

Categories

Overview

UPC 05400712174

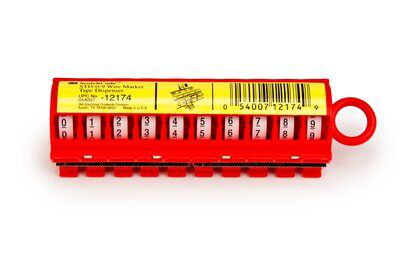

Long Description Compact and lightweight dispenser is designed for easy handlingEasy to refill, holds up to 10 different rollsDispenser is filled with 10 rolls of pre-printed marker tape, one each of numbers zero '0' to nine '9'Durable plastic constructionFeatures an end loop to easily suspend it from a tool pouch or beltRoHS 2011/65/EU CompliantOperating temperatures from -40F to 250F (-40C to 121C)
GTiN 00054007121749
Length 96 in
Width 5.46 mm
Size 0.215 inches x 96 inches
Adhesive Type Pressure Sensitive Adhesive
Color Red
Type Roller Shape, Pre-Printed, Number
Material Polyester
Product Type Identification
Applications For Wire Marking
Temperature Rating 32 - 120 F
Family Brand Name 3M
Max Operating Temperature 250 degrees F
Legend 0 - 9
Sub Brand ScotchCode
Overall Length 2.4 m
