Overview
3M™ ScotchCode™ SDR-0 Wire Marker Tape Refill Roll is a polyester film tape that is printed with a number for easy identification. It is ideal for marking all types of wire and cable including power, fiber optic, electronic and telecommunications. The tape has an acrylic, pressure-sensitive adhesive and withstands temperatures of -40 to 250 degrees F (-40 to 121 degrees C).
3M™ ScotchCode™ SDR-0 Wire Marker Tape Refill Roll is pre-printed with 6 numbers for every inch and is ideal for phase identification on large- or small-gauge wire or cable and for automotive applications on tubing, hoses and replacement parts. This tape is also ideal for identification of terminal blocks/strips, wire in panel boards or a piece of switchgear. It is compatible with the 3M ScotchCode Tape Dispenser STD that provides easy and ideal usage. RoHS 2011/65/EU Compliant.
- Suitable for phase identification on large- or small-gauge wire or cable and automotive applications
- Acrylic, pressure-sensitive adhesive ensures firm adhesion
- Thin, conformable polyester film tape for marking all types of wires and cables including power, telecommunications and instrumentation
- Designed for easy identification of terminal blocks/strips, wire in panel boards or a piece of switchgear
- Printed with number "0"

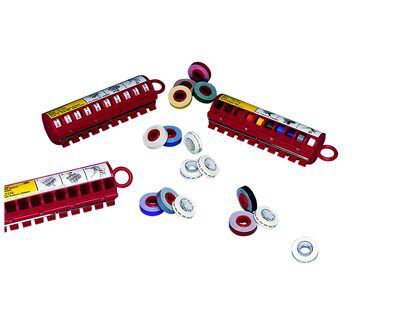

- Compatible with 3M™ ScotchCode™ Tape Dispenser STD for convenient usage
- Withstands a wide temperature range of -40 to 250 degrees F (-40 to 121 degrees C)
- RoHS 2011/65/EU Compliant
- 10 rolls/box, 50 rolls/case
Specifications
- 3M ID: 80610733919
- Adhesive Material: Acrylic
- Applications: Marking Wire and Cable
- Brand: 3M™
- Color: White
- Length (Metric): 2.4 m
- Marker ID Style: Pre-printed
- Maximum Operating Temperature (Celsius): 121 Degree Celsius
- Maximum Operating Temperature (Fahrenheit): 250 Degree Fahrenheit
- Printed Text: 0"
- Printed Text Type: Number - 0
- Product Type: Identification
- RoHS 2011/65/EU Compliant: Yes
- RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
- Solution for: Access Network: FTTH/FTTB/CATV, Access Network: xDSL, Long-haul/Metro Loop Network: CO/POP, Long-haul/Metro Loop Network: Outdoor, Wireless Network: Backhaul
- Tape Color: White
- Thickness: 0.08
- Trademark: Scotchcode
- UV Resistant: No
- Voltage Application: Low Voltage
- Width (Metric): 5.46 mm
- Wire Marker Products: Wire Marker Tape Dispenser and Refill Rolls
Legal Disclaimer
- Manufacturing Origin: USA
- The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
- Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.
