3M S-31-A S-31-A CLOSED END CONNECT
Usually available within 6 to 8 Days
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # S-31-A
Viking Electric Part # 51629

Overview

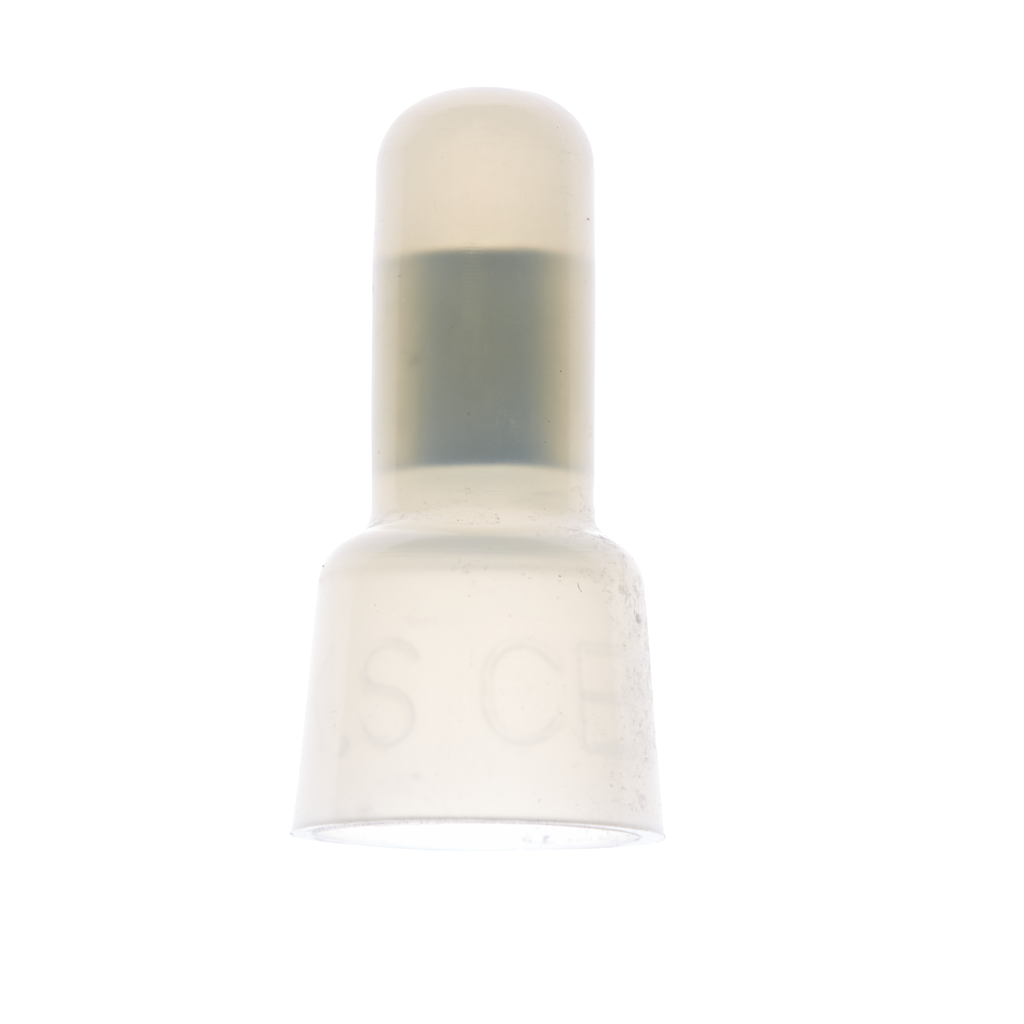

3M™ Scotchlok™ Color-Coded Closed-End Connector is an electrical crimp sleeve connector with a copper insert that allows for fast splicing of copper conductors. The vinyl-insulated connector is 600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires. It withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C).

3M™ Scotchlok™ Closed-End Connector is color-coded for quick and easy identification of the wire size required. It allows for quick wire insertion with a smooth, flared entry. The copper insert offers good conductivity. RoHS 2011/65/EU Compliant.

  • Vinyl-insulated barrel ensures a secure fit and offers reliable performance
  • A smooth, flared end provides quick wire insertion
  • Built-in wire stop for correct positioning
  • Accommodates wire sizes 18 to 10 AWG
  • Copper insert offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton

Specifications

  • 3M ID: 80611466428
  • Barrel Style: Insulation Grip
  • Brand: Scotchlok™
  • Color: Translucent White
  • Conductor Size: 18 - 10 AWG
  • Family: Crimp Sleeve Connectors
  • Flame Retardant: No
  • Insulation Material: Nylon
  • Length: 1 Inch
  • Length (Metric): 25.4 mm
  • Material: Plastic
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Voltage: 600 Volt
  • Maximum Wire Gauge: 10 AWG
  • Minimum Wire Gauge: 18 AWG
  • Packaging: 50 per bottle
  • Product Type: Connector
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Terminal Style: Copper
  • Terminal Type: Closed End Connectors
  • Trademark: Scotchlok
  • Wire Connector Type: Closed End Connectors

Overview

UPC 05112858996
Long Description 3M Scotchlok Color-Coded Closed-End Connector is an electrical crimp sleeve connector with a copper insert that allows for fast splicing of copper conductors. The vinyl-insulated connector is 600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires. It withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C).
GTiN 00051128589960
Type Closed End
Material Plastic
Family Brand Name 3M
Terminal Size 18 - 10 AWG
Sub Brand Scotchlok
Length 1 in
Color White
Voltage 600 Volt
Barrel Type Insulation Grip
Terminal Style Copper
Terminal Type Closed End Connectors
Product Type Connector
Conductor Size 10 AWG
Insulation Material Nylon
Max Operating Temperature 221 degrees F
Max Voltage 600 V
