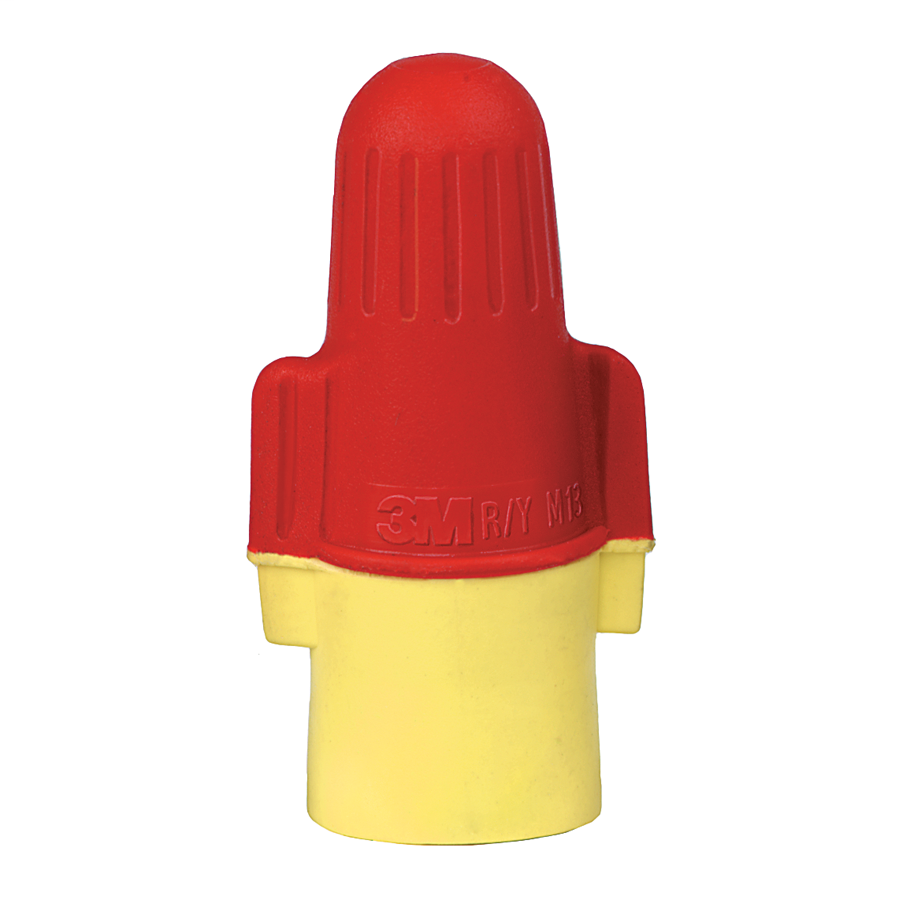

3M R/Y+JUG 500/Jug Red/Yellow Spring Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
11,000 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 500 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # R/Y+JUG
Viking Electric Part # 50167

Features

  • Strong bite for a secure, reliable connection
  • Flexible spring expands for greater wire range and reuse
  • 3M™ Performance Plus™ Wire Connectors are designed with a uniquely flexible spring that has generous room for expansion and a strong bite for a secure connection. Because of their increased wire range, just three Performance Plus wire connectors handle the work of eight standard connectors. And the flexible skirt helps prevent copper exposure for enhanced safety.
  • Dual color coded: one connector does the job of two traditional connectors in the majority of applications
  • 3M™ Performance Plus™ Wire Connectors are UL Listed for 600 volts on copper wire. They are available in five color/wire range options: O/B+ (orange/blue) 2 #22 - 3 #12 AWG; T/Y+ (tan/yellow) 2 #22 - 3 #12 AWG; R/Y+ (red/yellow) 2 #18 - 2 #8 AWG; T/R+ (tan/red) 2 #18 - 5 #12 AWG; B/G+ (blue/gray) 4 #14 - 2 #6 AWG.
  • UL Listed
  • UL Listed and CSA Certified

Specifications

  • 3M ID: 80611454515
  • Agency Approvals: UL, CE, IEC, and CSA
  • Boxes per Case: 8
  • Brand: 3M™
  • China RoHS - Below MCV: Yes
  • Conductor Sizes: 22 - 8 AWG
  • Connection Type: Wire
  • Connector Style: Twist On
  • Family: 3M™ Performance Plus Wire Connector
  • Flame Retardant: Yes
  • Material: Plastic
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 8 AWG
  • Minimum Wire Gauge: 22 AWG
  • Packaging: Jug
  • Product Color: Red || Yellow
  • Product Type: Connector
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Units per Case: 4000
  • Voltage Rating: 600 Volt

Overview

UPC 05400743155
Long Description The 3M Performance Plus Wire Connector electrically connects two or more conductor ends in a pigtail application and insulates the connection. It combines a very small shell with an increased wire range. The spring bites wire quickly with less effort, and the small shell fits easily into tight spaces, while its flexible skirt helps protect workers from contact with over-stripped wires. This 3M Performance Plus connector is great for various conductor sizes; four #14, two #2 and three #8 AWG.
GTiN 00054007431558
Color Red/Yellow
Type Flame Retardant
Conductor Size 22-8 AWG
Connection Type Twist-On
Temperature Rating 221 F
Family Brand Name 3M
Flame Retardant Yes
Tc Connection Twist On
Voltage 600/1,000 Volt
Material Steel Spring
Max Operating Temperature 221 degrees F
