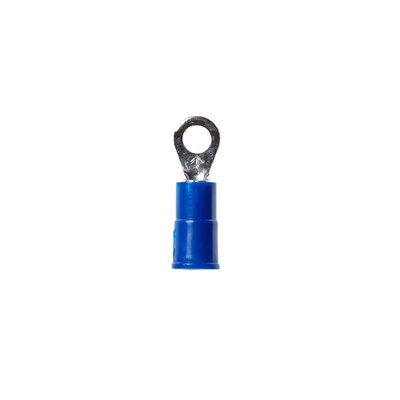

3M MVU14-6R/SX MVU14-6R/SX RING VIN
600 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MVU14-6R/SX
Viking Electric Part # 146964

Specifications

  • Width: 0.25 Inch
  • Insulation Material: Vinyl
  • Trademark: Scotchlok
  • Clearance (C): 0.22 Inch
  • Conductor Sizes: 16 - 14 AWG
  • Stud Size: 6
  • Brand: Scotchlok
  • Packaging: 100 per bottle
  • Terminal Style: Standard
  • Dimension E: 0.67 Inch
  • Length: 0.8 Inch
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Agency Approvals: UL and CSA
  • Terminal Type: Ring
  • UL File Number: E23438
  • Barrel Style: Butted
  • CSA File Number: LR22190
  • RoHS 2011/65/EU Compliant: Yes
  • Thickness: 0.03 Inch
  • Maximum Insulation Outer Diameter: 0.145 Inch

Documents

Overview

UPC 05112858818
Long Description Ring Vinyl Insulated, 100/bottle, MVU14-6R/SX
GTiN 00051128588185
Type Ring
Material PVC
Stud Size 6
Family Brand Name 3M
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 0.8 in
Width 0.25 in
Thickness 0.03 in
Barrel Type Butted
Terminal Style Standard
Terminal Type Ring
Conductor Size 16 To 14 AWG
Insulation Material Vinyl
