Overview

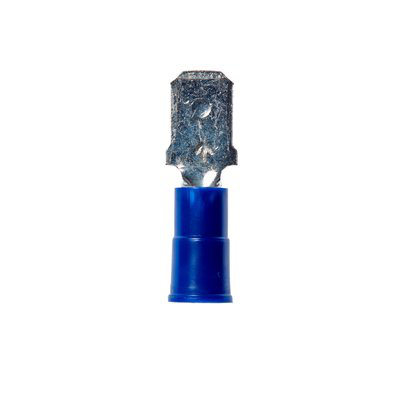

3M™ Scotchlok™ Color-Coded Standard Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Color-Coded Standard Male Disconnect Terminal attaches to the mating part with a tongue that slips over the female tab. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve. The polyvinyl chloride sleeve serves to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The vinyl-sleeve insulation is abrasion-resistant and flared to ensure easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
- Blue vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- This male disconnect terminal offers excellent holding force
- Allows for quick and easy disconnect of wires
- Mates with 0.25-in wide female tab
- Accommodates wire sizes 16 to 14 AWG
- Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- 100/carton, 500/case
Specifications
- 3M ID: 80611458219
- Agency Approvals: UL and CSA
- Barrel Style: Butted
- Brand: Scotchlok™
- Color: Blue
- Conductor Size: 16 - 14 AWG
- Conductor Sizes: 16 - 14 AWG
- CSA File Number: LR22190
- Diameter: 0.39 Inch
- Diameter (Metric): 9.9
- Fastener Orientation: Male
- Insulation Material: Vinyl
- Length: 0.93 Inch
- Length (Metric): 23.6 mm
- Male Tab Width (W'): 0.250 Inch
- Material: Plastic
- Maximum Insulation Outer Diameter: 0.170 Inch
- Maximum Operating Temperature (Celsius): 105 Degree Celsius
- Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
- Maximum Recommended Voltage Rating: 600 V
- Maximum Wire Gauge: 14 AWG
- Minimum Wire Gauge: 16 AWG
- Packaging: 100 per bottle
- Pad Width: 0.25 Inch
- RoHS 2011/65/EU Compliant: Yes
- RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
- Solution for: Wireless Network: Infrastructure Accessories
- Terminal Style: Standard
- Terminal Type: Disconnect
- Thickness: 0.032 Inch
- Thickness (Metric): 8.1 mm
- Trademark: Scotchlok
- UL File Number: E70512
- Voltage Application: Low Voltage
