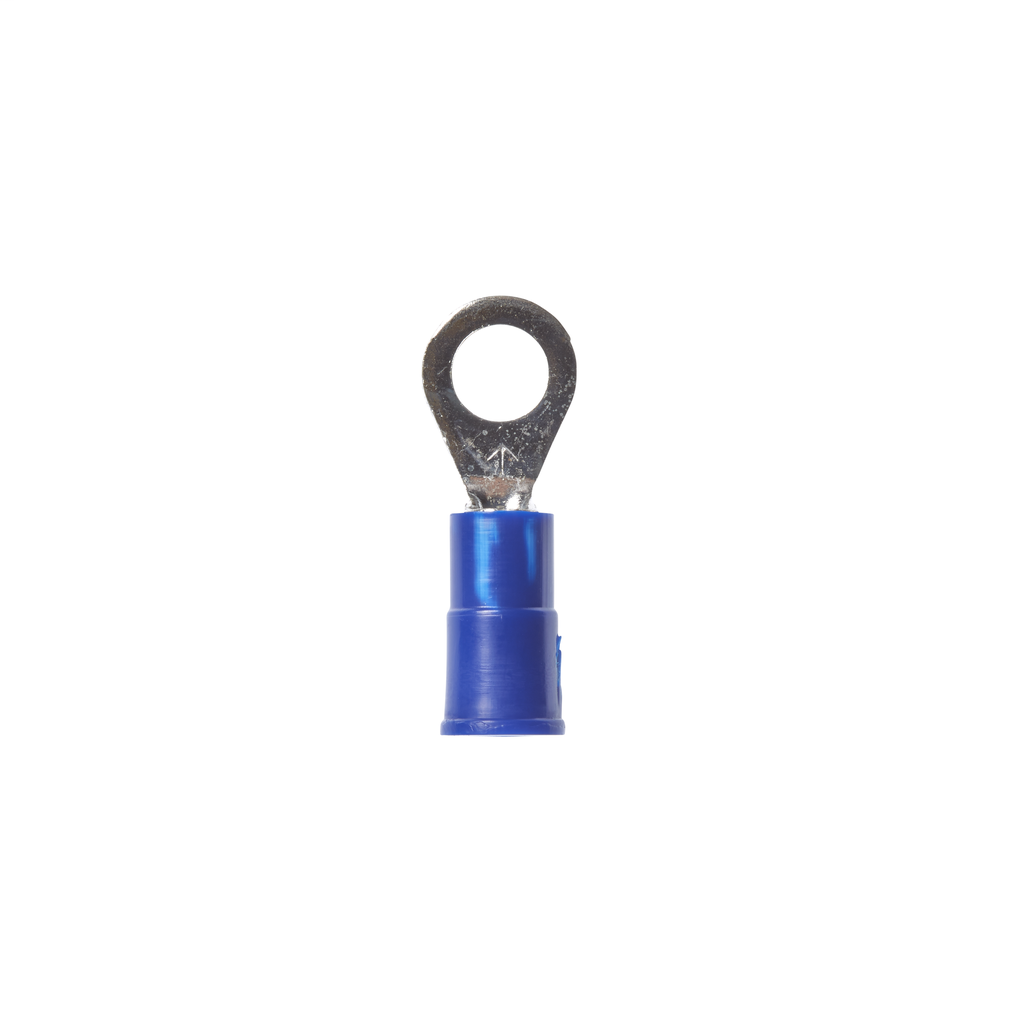

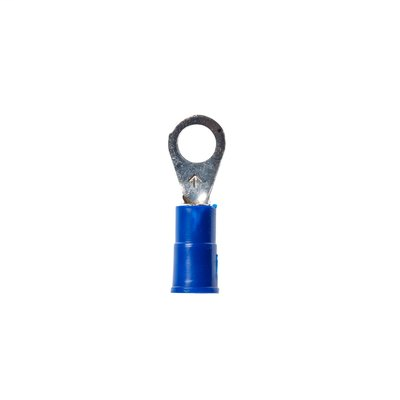

3M MVU14-10RK Vinyl Insulated Butted Seam Ring Tongue Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
1,000 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 1000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MVU14-10RK
Viking Electric Part # 44446

Features

  • Blue vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size #10
  • Accommodates wire sizes 16 to 14 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 1000/case

Specifications

  • Connection Width (Imperial): 0.19 in
  • Connection Width (Metric): 4.826 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 14 AWG
  • Minimum Conductor Size: 16 AWG
  • Overall Length (Imperial): 0.9 in
  • Overall Width (Imperial): 0.33 in
  • Product Key: KVBT BULK VINYL BUTTED SEAM TERMINALS FKD
  • Terminal Type: Ring

Overview

UPC 05400701452
Long Description 3M Scotchlok Color-Coded Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00054007014522
Type Ring
Material PVC
Family Brand Name Scotchlok
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 0.9 in
Width 0.33 in
Thickness 0.03 in
Barrel Type Butted
Stud Size 10
Terminal Style Standard
Terminal Type Ring
Conductor Size 16 To 14 AWG
Insulation Material Vinyl
Barrel Length 0.25 in
Overall Length 0.9 in
