3M MVI10-250DFX 50/Bottle Vinyl Insulated Female Disconnect
2,000 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MVI10-250DFX
Viking Electric Part # 44436

Overview

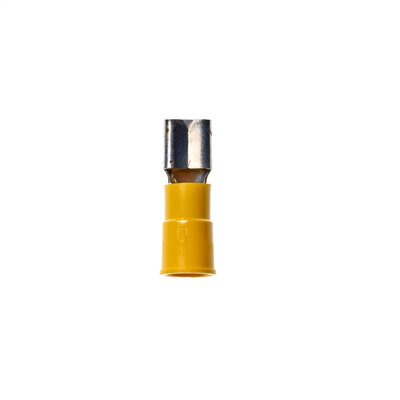

3M™ Scotchlok™ Color-Coded Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Scotchlok™ Color-Coded Standard Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve. The polyvinyl chloride sleeve serves to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The vinyl-sleeve insulation is abrasion-resistant and flared to ensure easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

  • Yellow vinyl-insulated, butted seam with an interlocking barrel and funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide male tab
  • Accommodates wire sizes 12 to 10 AWG
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

Specifications

  • 3M ID: 80611465826
  • Agency Approvals: UL and CSA
  • Barrel Length: 0.25 Inch
  • Barrel Style: Interlocking Barrel
  • Brand: Scotchlok™
  • Color: Yellow
  • Conductor Size: 12 - 10 AWG
  • Conductor Sizes: 12 - 10 AWG
  • Connection Type: Wire
  • Connector Style: Insulation Displacement
  • CSA File Number: LR22190
  • Diameter: 0.23 Inch
  • Diameter (Metric): 5.8
  • Fastener Orientation: Female
  • Flame Retardant: No
  • Insulation Material: Vinyl
  • Length: 0.95 Inch
  • Length (Metric): 24.13 mm
  • Material: ETP Copper
  • Mates with Male Tab Width (W'): 0.25 Inch
  • Maximum Insulation Outer Diameter: 0.250 Inch
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 10 AWG
  • Minimum Wire Gauge: 12 AWG
  • Packaging: 50 per bottle
  • Pad Width: 0.25 Inch
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Solution for: Wireless Network: Infrastructure Accessories
  • Terminal Style: Standard
  • Terminal Type: Disconnect
  • Thickness: 0.032 Inch
  • Thickness (Metric): 0.81 mm
  • Trademark: Scotchlok
  • UL File Number: E70512
  • Width: 0.37 Inch
  • Width (Metric): 9.4

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112858936
Long Description 3M Scotchlok Color-Coded Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128589366
Type Disconnect
Material ETP Copper
Family Brand Name 3M
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
Length 0.95 in
Width 0.37 in
Color Yellow
Diameter 0.23 in
Thickness 0.032 in
Barrel Type Interlocking Barrel
Terminal Style Standard
Terminal Type Disconnect
Conductor Size 12-10 AWG
Connection Type Wire
Insulation Material Vinyl
Max Operating Temperature 221 degrees F
Barrel Length 0.25 in
