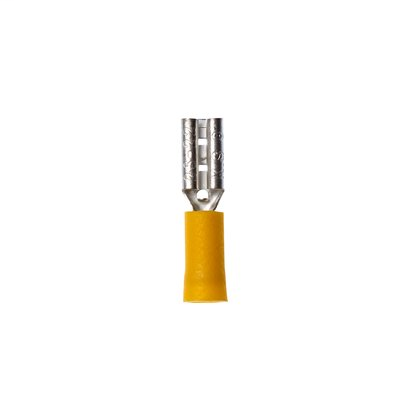

3M MVI10-250DFK Vinyl Insulated Butted Seam Female Disconnect with Interlocking Barrel
Product image thumbnail 0
Product image thumbnail 1
3,000 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 500 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MVI10-250DFK
Viking Electric Part # 44435

Features

  • Yellow vinyl-insulated, butted seam with an interlocking barrel and funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide male tab
  • Accommodates wire sizes 12 to 10 AWG
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 500/case

Specifications

  • Barrel Inside Diameter: 0.128 Inch
  • Barrel Length (Imperial): 0.25 Inch
  • Barrel Style: Interlocking Barrel
  • Conductor Size: 12 - 10 AWG
  • Connection Type: Wire
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Connector / Connector Tool: Connector
  • Connector Style: Insulation Displacement
  • CSA File Number: LR22190
  • Diameter (D): 0.23 Inch
  • Disconnect Type: Female
  • Fastener Orientation: Female
  • Flame Retardant: No
  • Grease Filling Against Corrosion: No
  • Insulation Color: Yellow
  • Insulation Material: Vinyl
  • Interrupt Free Shifting: No
  • Mates with Female Width: 0.25 Inch
  • Mates with Male Tab Width (W'): 0.25 Inch
  • Maximum Conductor Size: 10 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.25 in
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 10 AWG
  • Minimum Conductor Size: 12 AWG
  • Minimum Wire Gauge: 12 AWG
  • Overall Diameter (Imperial): 0.23 in
  • Overall Length (Imperial): 0.95 in
  • Product Key: DWWI DOUBLE WALL WITH INTERLOCK FKD
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tab Width: 0.250
  • Terminal Style: Standard
  • Terminal Type: Standard
  • UL File Number: E70512

Overview

UPC 05400769578
Long Description 3M Scotchlok Color-Coded Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00054007695783
Length 0.95 in
Type Disconnect
Thickness 0.032 in
Barrel Type Interlocking Barrel
Material PVC
Terminal Style Standard
Terminal Type Disconnect
Conductor Size 12 To 10 AWG
Family Brand Name Scotchlok
Insulation Material Vinyl
Terminal Size 12 - 10 AWG
Barrel Length 0.25 in
Sub Brand Scotchlok
Diameter 0.23 in
Max Operating Temperature 221 degrees F
Overall Length 0.95 in
