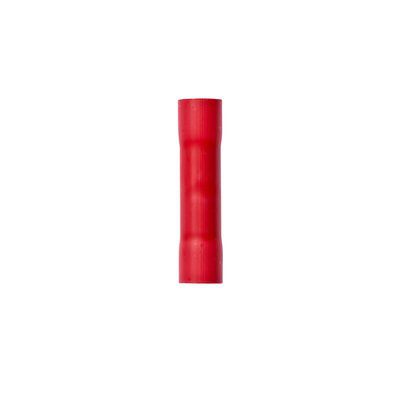

3M MV8BCX 10/Bottle Vinyl Insulated Butt Connector
Usually available within 6 to 8 Days
Adding...
Order in multiples of 10 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV8BCX
Viking Electric Part # 44432

Features

  • Red vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 3M™ Scotchlok™ Color-Coded Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). The electrolytic copper terminal offers good conductivity and a tin-plated finish resists corrosion.
  • 3M™ Scotchlok™ Butt Connector is color-coded for quick and easy identification of the wire size required. It has a brazed-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Built-in wire stop for correct positioning
  • Accommodates wire size 8 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611464191
  • Manufacturing Origin: USA
  • Brand: Scotchlok™
  • Color Family: Red
  • Fork Type: Standard
  • Insulation Material: Vinyl
  • Maximum Conductor Size: 8 AWG
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Minimum Conductor Size: 8 AWG
  • Overall Length (Imperial): 1.5 in
  • Product Color: Red

Overview

UPC 05112858773
Long Description Butt Connector Vinyl Insulated, 10/bottle, MV8BCX
GTiN 00051128587737
Length 1.5 in
Type Butt
Thickness 0.05 in
Barrel Type Brazed
Material PVC
Terminal Style Standard
Terminal Type Butt
Conductor Size 8 AWG
Family Brand Name Scotchlok
Insulation Material Vinyl
Terminal Size 8 AWG
Barrel Length 0.38 in
Sub Brand Scotchlok
Color Red
Max Operating Temperature 105 C
Overall Length 1.5 in
