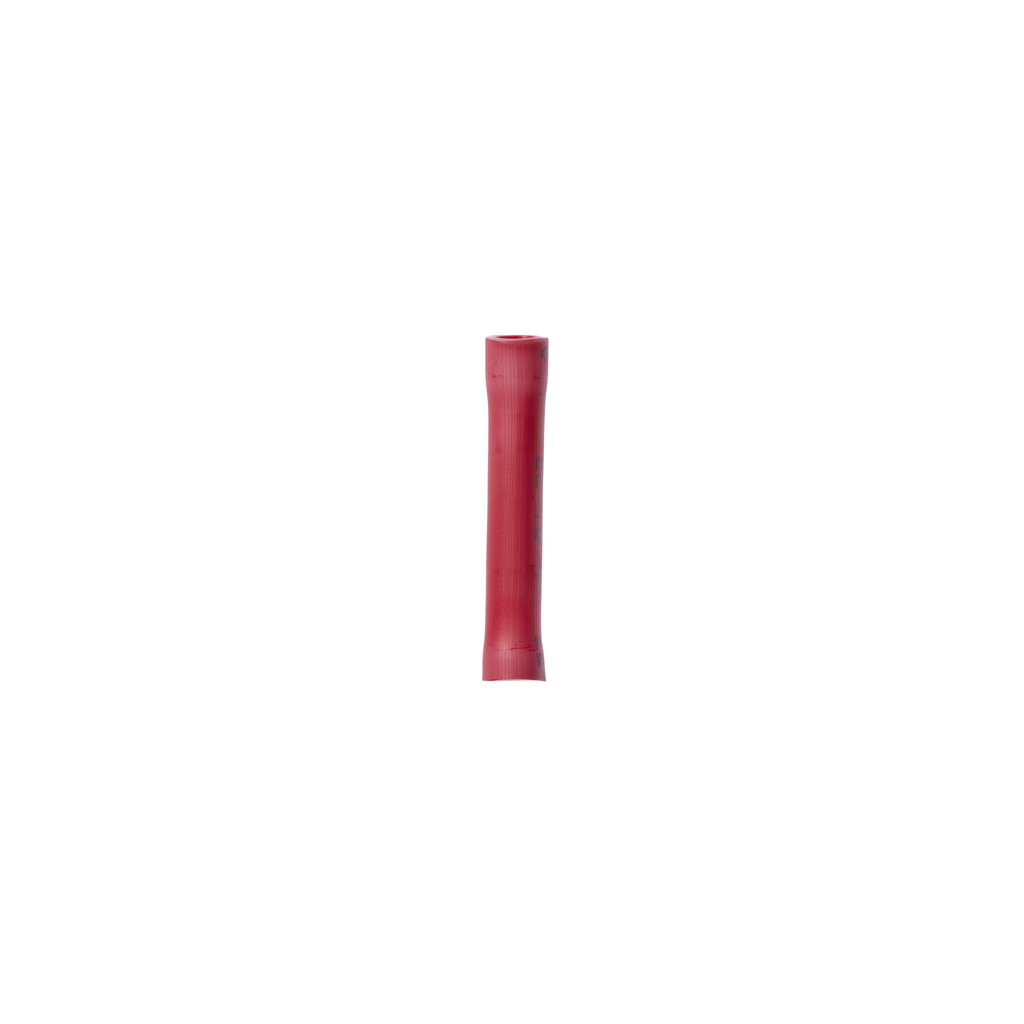

3M MV18BCX 100/Bottle Seamless Vinyl Insulated Butt Connector
Product image thumbnail 0
Product image thumbnail 1
2,500 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV18BCX
Viking Electric Part # 44431

Features

  • Red vinyl-insulated, seamless barrel ensures a secure fit and offers reliable performance
  • Offers electrical connection to a pre-stripped end of a stranded wire
  • Built-in wire stop for correct positioning
  • Accommodates wire sizes 22 to 18 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 250/case

Specifications

  • Body Material: Copper Alloy
  • Color Family: Red
  • Connector Type: Butt
  • Insulation Material: Vinyl
  • Maximum Conductor Size: 18 AWG
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Minimum Conductor Size: 22 AWG
  • Overall Length (Imperial): 1.02 in
  • Overall Length (Metric): 25.9 mm
  • Product Color: Red

Overview

UPC 05112858739
Long Description Corrosion resistance to water, salt, steam and other related contaminantsRed vinyl-insulated, seamless barrel ensures a secure fit and offers reliable performanceBuilt-in wire stop for correct positioningAccommodates wire sizes 22 to 18 AWGMade of electrolytic copper for good conductivity and has tin plating for corrosion resistanceMaximum operating temperature of 221F (105C)UL Listed, CSA Certified and RoHS 2011/65/EU Compliant600V-rated for building wire and 1000V for signs, fixtures or luminaires
GTiN 00051128587393
Length 1.02 in
Color Red
Type Standard
Thickness 0.031 in
Barrel Type Seamless
Material PVC
Terminal Style Standard
Terminal Type Butt
Conductor Size 22-18 AWG
Family Brand Name 3M
Insulation Material Vinyl
Terminal Size 22 - 18 AWG
Barrel Length 0.28 in
Sub Brand Scotchlok
Max Operating Temperature 105 C
Overall Length 1.02 in
