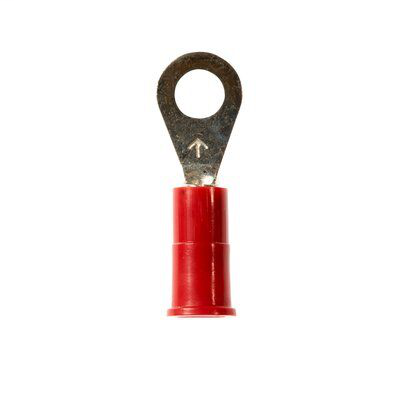

3M MV18-8R/LX 100/Bottle Vinyl Insulated Ring
400 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV18-8R/LX
Viking Electric Part # 44430

Specifications

  • Agency Approvals: UL and CSA
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: 8
  • Terminal Style: Standard
  • Packaging: 100 per bottle
  • Trademark: Scotchlok
  • Barrel Style: Brazed
  • Maximum Insulation Outer Diameter: 0.145 Inch
  • Clearance (C): 0.33 Inch
  • Length: 0.93 Inch
  • RoHS 2011/65/EU Compliant: Yes
  • Insulation Material: Vinyl
  • CSA File Number: LR22190
  • Thickness: 0.03 Inch
  • UL File Number: E23438
  • Dimension E: 0.78 Inch
  • Width: 0.31 Inch
  • Terminal Type: Ring
  • Brand: Scotchlok
  • Conductor Sizes: 22 - 18 AWG

Documents

Categories

Overview

UPC 05112858731
Long Description Ring Vinyl Insulated, 100/bottle, MV18-8R/LX
GTiN 00051128587317
Length 0.93 in
Finish Tin Plated
Width 0.31 in
Color Red
Type Standard
Thickness 0.03 in
Barrel Type Brazed Seam
Material ETP Copper
Stud Size #8
Terminal Style Standard
Terminal Type Ring
Conductor Size 22-18 AWG
Barrel Diameter 0.07 in ID
Temperature Rating -40 to 105 C
Family Brand Name 3M
Insulation Material Vinyl
Terminal Size 22 - 18 AWG
Barrel Length 0.45 in
Sub Brand Scotchlok
Voltage 600 Volt
