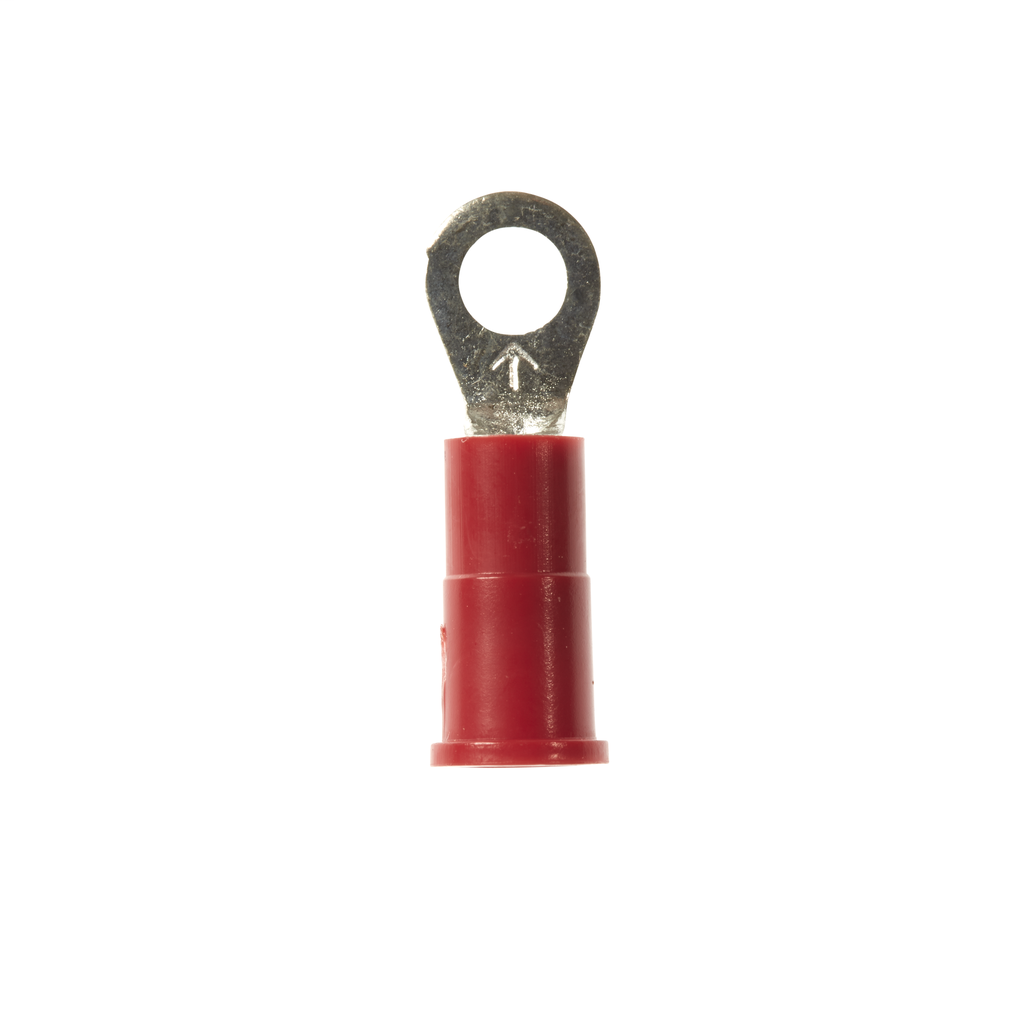

3M MV18-6R/SX 100/Bottle Vinyl Insulated Ring
100 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV18-6R/SX
Viking Electric Part # 44427

Overview

3M™ Scotchlok™ Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

  • Red vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size #6
  • Accommodates wire sizes 22 to 18 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • 3M ID: 80611458755
  • Agency Approvals: UL and CSA
  • Barrel Style: Brazed
  • Brand: Scotchlok™
  • Clearance (C): 0.22 Inch
  • Color: Red
  • Conductor Size: 22 - 18 AWG
  • Conductor Sizes: 22 - 18 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.67 Inch
  • Insulation Material: Vinyl
  • Length: 0.8 Inch
  • Length (Metric): 20.32 mm
  • Material: Plastic
  • Maximum Insulation Outer Diameter: 0.145 Inch
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 18 AWG
  • Minimum Wire Gauge: 22 AWG
  • National Stock Number: 5940013410519
  • Operating Temperature Range (Celsius): -40 °C to 105 °C
  • Operating Temperature Range (Fahrenheit): -40 °F to 221 °F
  • Packaging: 100 per bottle
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Solution for: Wireless Network: Infrastructure Accessories
  • Stud Size: #6
  • Terminal Style: Standard
  • Terminal Type: Ring
  • Thickness: 0.03 Inch
  • Thickness (Metric): 0.76 mm
  • Trademark: Scotchlok
  • Type: Standard
  • UL File Number: E23438
  • Width: 0.25 Inch
  • Width (Metric): 6.35 mm

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112858730
Long Description 3M Scotchlok Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128587300
Length 0.8 in
Finish Tin Plated
Width 1/4 in
Color Red
Type Standard
Thickness 0.03 in
Barrel Type Brazed Seam
Material ETP Copper
Stud Size #6
Terminal Style Standard
Terminal Type Ring
Conductor Size 22-18 AWG
Barrel Diameter 0.07 in ID
Temperature Rating -40 to 105 C
Family Brand Name 3M
Insulation Material Vinyl
Terminal Size 22 - 18 AWG
Max Operating Temperature 221 degrees F
Barrel Length 0.45 in
Sub Brand Scotchlok
Voltage 600 Volt
