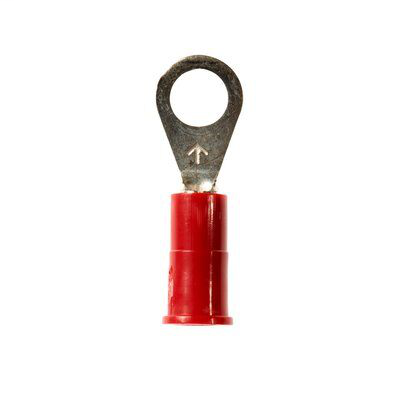

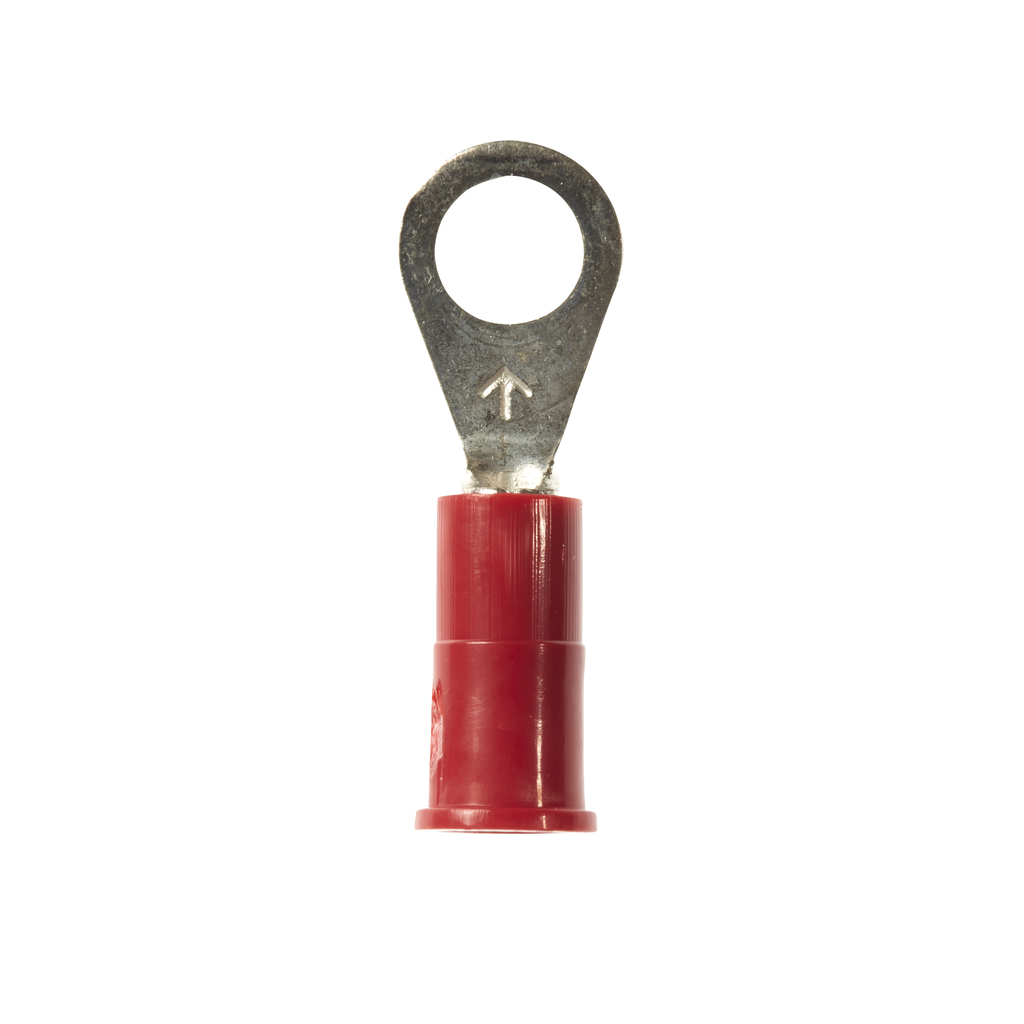

3M MV18-10R/LX 100/Bottle Vinyl Insulated Ring
Usually available within 6 to 8 Days
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV18-10R/LX
Viking Electric Part # 44422

Features

  • Red vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • 3M™ Scotchlok™ Color-Coded Large Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size #10
  • Accommodates wire sizes 22 to 18 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611458771
  • Manufacturing Origin: USA
  • Brand: Scotchlok™
  • Color Family: Red
  • Connection Width (Imperial): 0.19 in
  • Connection Width (Metric): 4.826 mm
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Overall Length (Imperial): 0.93 in
  • Overall Length (Metric): 23.62 mm
  • Overall Width (Imperial): 0.31 in
  • Overall Width (Metric): 7.87 mm
  • Product Color: Red
  • Terminal Type: Ring

Overview

UPC 05112858732
Long Description 3M Scotchlok Color-Coded Large Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128587324
Length 0.93 in
Finish Tin Plated
Width 0.31 in
Color Red
Type Standard
Barrel Type Brazed Seam
Material ETP Copper
Stud Size #10
Conductor Size 22-18 AWG
Barrel Diameter 0.07 in ID
Temperature Rating -40 to 105 C
Family Brand Name 3M
Insulation Material Vinyl
Terminal Size 22 - 18 AWG
Barrel Length 0.45 in
Sub Brand Scotchlok
Voltage 600 Volt
Max Operating Temperature 105 C
Overall Length 0.93 in
