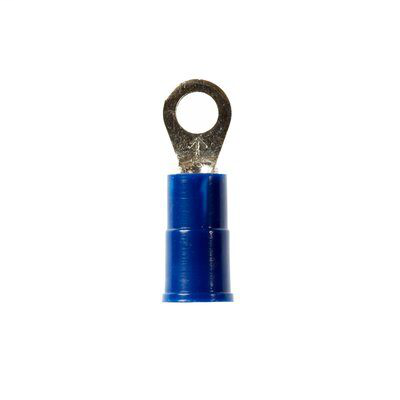

3M MV14-6R/SX 100/Bottle Vinyl Insulated Ring
100 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV14-6R/SX
Viking Electric Part # 44413

Specifications

  • Trademark: Scotchlok
  • UL File Number: E23438
  • Agency Approvals: UL and CSA
  • Packaging: 100 per bottle
  • Brand: Scotchlok
  • Terminal Style: Standard
  • Length: 0.8 Inch
  • Stud Size: 6
  • Insulation Material: Vinyl
  • Width: 0.25 Inch
  • Barrel Style: Brazed
  • Dimension E: 0.67 Inch
  • Terminal Type: Ring
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • RoHS 2011/65/EU Compliant: Yes
  • Conductor Sizes: 16 - 14 AWG
  • Clearance (C): 0.22 Inch
  • Thickness: 0.03 Inch
  • Maximum Insulation Outer Diameter: 0.170 Inch
  • CSA File Number: LR22190

Documents

Categories

Overview

UPC 05112858753
Long Description Ring Vinyl Insulated, 100/bottle, MV14-6R/SX
GTiN 00051128587539
Type Ring
Material PVC
Family Brand Name 3M
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 0.8 in
Width 0.25 in
Thickness 0.03 in
Barrel Type Brazed
Stud Size 6
Terminal Style Standard
Terminal Type Ring
Conductor Size 16 To 14 AWG
Insulation Material Vinyl
