Overview

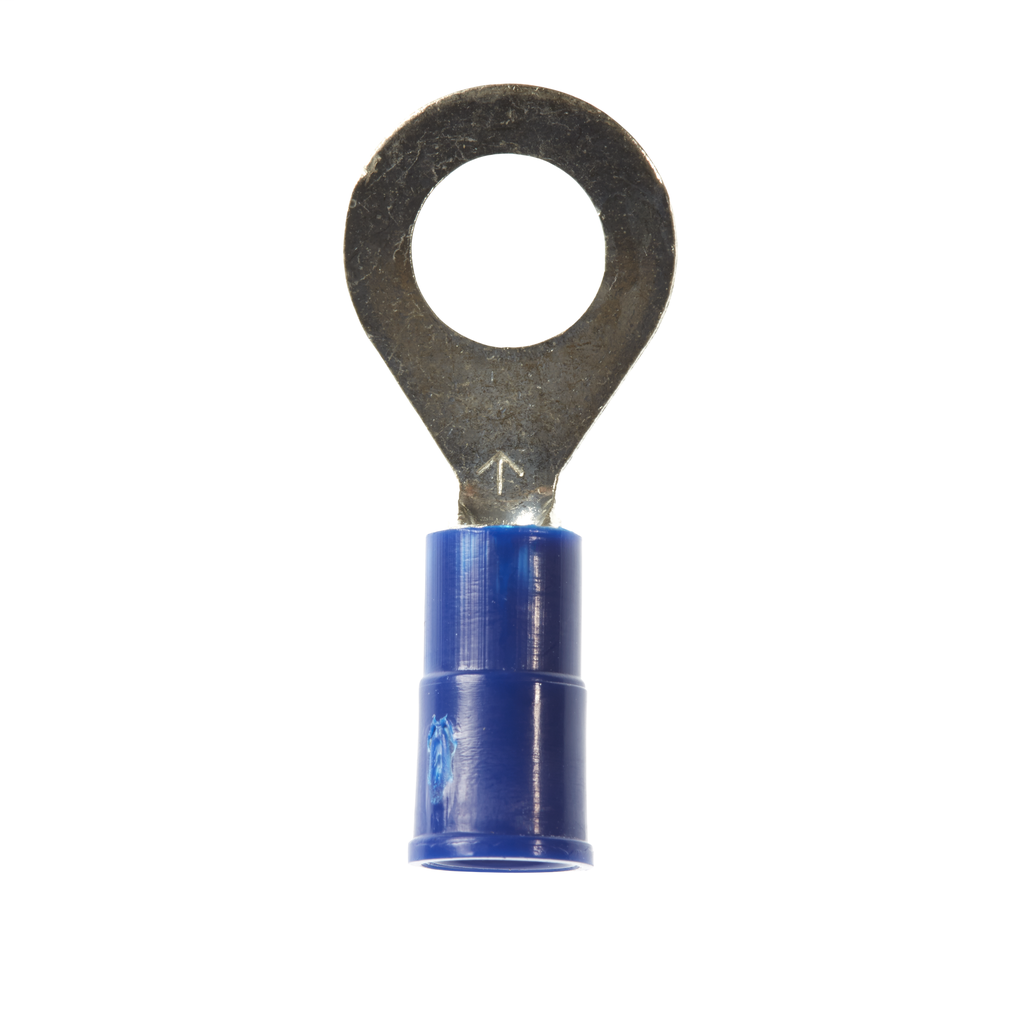

3M™ Scotchlok™ Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
- Blue vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Standard-style ring tongue fits around the stud
- Stud size 1/4 in
- Accommodates wire sizes 16 to 14 AWG
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- 100/carton, 500/case
Specifications
- 3M ID: 80611458953
- Agency Approvals: UL and CSA
- Barrel Style: Brazed
- Brand: Scotchlok™
- Clearance (C): 0.40 Inch
- Color: Blue
- Conductor Size: 16 - 14 AWG
- Conductor Sizes: 16 - 14 AWG
- CSA File Number: LR22190
- Dimension E: 0.85 Inch
- Insulation Material: Vinyl
- Length: 1.08 Inch
- Length (Metric): 27.43 mm
- Material: Plastic
- Maximum Insulation Outer Diameter: 0.170 Inch
- Maximum Operating Temperature (Celsius): 105 Degree Celsius
- Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
- Maximum Recommended Voltage Rating: 600 V
- Maximum Wire Gauge: 14 AWG
- Minimum Wire Gauge: 16 AWG
- National Stock Number: 5940013413108
- Operating Temperature Range (Celsius): -40 °C to 105 °C
- Operating Temperature Range (Fahrenheit): -40 °F to 221 °F
- Packaging: 100 per bottle
- RoHS 2011/65/EU Compliant: Yes
- RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
- Solution for: Wireless Network: Infrastructure Accessories
- Stud Size: 1/4 Inch
- Terminal Style: Standard
- Terminal Type: Ring
- Thickness: 0.03 Inch
- Thickness (Metric): 0.76 mm
- Trademark: Scotchlok
- Type: Standard
- UL File Number: E23438
- Width: 0.47 Inch
- Width (Metric): 11.93 mm
